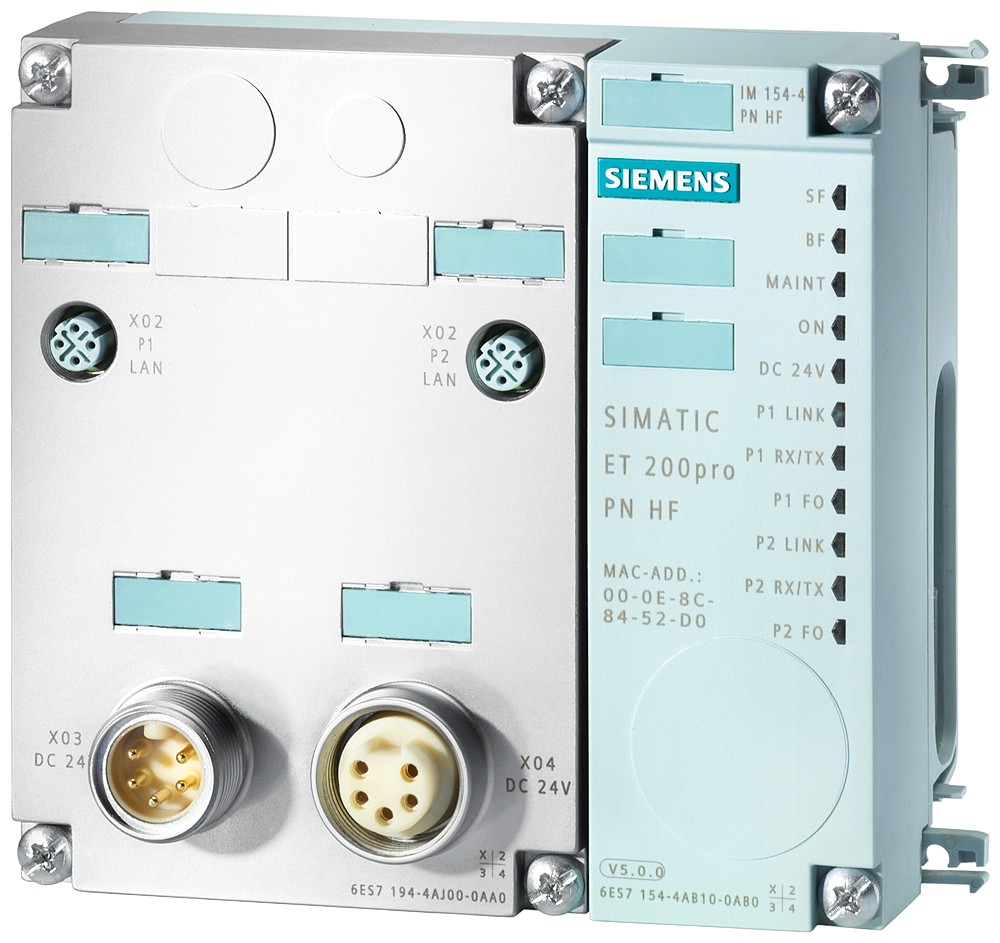

Siemens 6ES7154-4AB10-0AB0 ET 200pro IM 154-4 PN HF PROFINET Interface Module

The Siemens 6ES7154-4AB10-0AB0 is a SIMATIC ET 200pro interface module (IM 154-4 PN HF) that connects the ET 200pro I/O station to PROFINET IO via an integrated switch with 100 Mbit/s autonegotiation and IRT support. It runs from a 24 V DC supply, addresses 256 bytes of inputs and 256 bytes of outputs, and supports PROFIsafe and MRP media redundancy.

Technical Specifications

Selection Notes

The High Feature (HF) designation is what enables IRT and PROFIsafe on this module, so it is the interface module to pick when the ET 200pro station sits on an isochronous PROFINET segment or carries F-modules that need fail-safe communication; hot swapping is supported for module replacement without powering down the station. The integrated switch means no external PROFINET switch is needed to continue the line topology to the next station. A connection/termination module (6ES7194-4A..-0AA0) is required and must be ordered separately to complete the mechanical mounting.

Applications

Head/interface module for an ET 200pro remote I/O station on a PROFINET line topology, particularly where motion-synchronized (isochronous) I/O or PROFIsafe fail-safe signals run over the same network segment as standard I/O.
