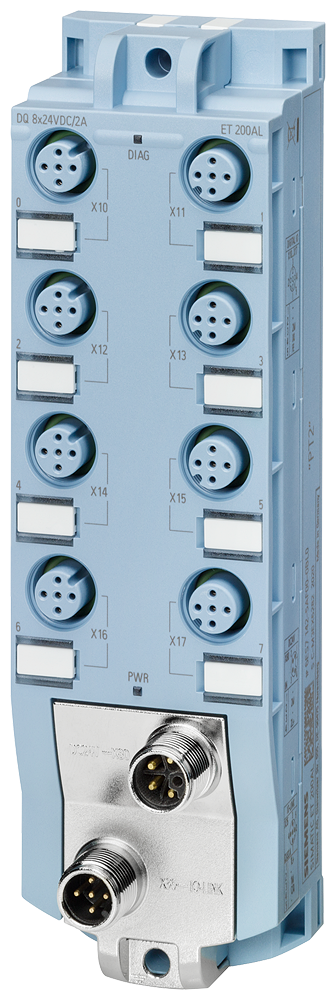

Siemens 6ES7142-5AF00-0BL0 SIMATIC ET 200AL IO-Link DQ 8x24VDC/2A 8xM12 Remote I/O Module

The Siemens 6ES7142-5AF00-0BL0 is a SIMATIC ET 200AL IO-Link output module with 8 channels rated 2 A at 24 V DC, wired through 8x M12 connectors and communicating over IO-Link 1.1 at 38.4 kBd. Output current derates from 2 A at 45 degC to 1 A at 55 degC, and the module is suitable for safety-related tripping of standard modules to PL d / SIL 2 from firmware FS01.

Technical Specifications

Selection Notes

Pick the IO-Link variant over the standard hard-wired DQ module when the IO-Link master needs to configure or monitor the output channel state remotely, at the cost of an 8 A total output budget instead of 2 A per channel available on every port simultaneously. The current rating derates from 2 A at 45 degC to 1 A at 55 degC, so a hot cabinet-free installation near the top of that range needs the load sized against 1 A, not the nameplate 2 A. PL d / SIL 2 safety-related tripping support from firmware FS01 still applies, same as the non-IO-Link version.

Applications

Field-mounted actuator control on IO-Link networks - solenoid valves, indicator lamps, and small loads up to 2 A per channel where the IO-Link master needs diagnostic or configuration access to the output module itself.
