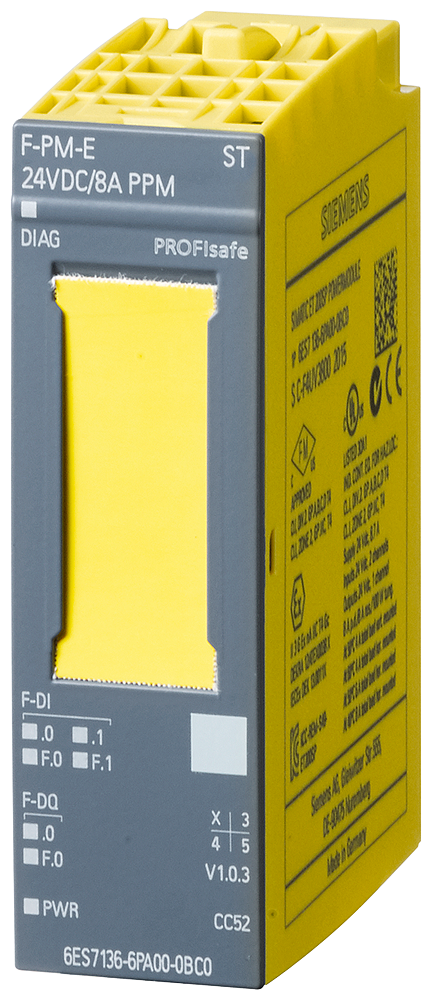

Siemens 6ES7136-6PA00-0BC0 SIMATIC ET 200SP F-PM-E 24V DC/8A PPM Fail-safe Remote I/O Module

The Siemens 6ES7136-6PA00-0BC0 is a SIMATIC ET 200SP F-PM-E fail-safe power module that switches 2 safe digital inputs and 1 safe PPM digital output rated 24 V DC / 8 A via PROFIsafe, reaching Performance Level PLe per ISO 13849-1 and SIL 3 per IEC 61508 for safe shutdown of downstream loads.

Technical Specifications

Certifications & Standards

• ISO 13849-1
• IEC 61508

Selection Notes

This F-PM-E variant switches a single 8 A PPM output on two safe inputs, so it fits applications needing one high-current safe shutdown point rather than a bank of channels; for higher safe-input or safe-output counts, the ET 200SP F-DI/F-DQ module family covers those channel-dense roles instead. Reaching PLe/SIL 3 requires the two-input safe circuit to be wired and configured as documented in the safety manual, and the 0.7-2.1 A electronic short-circuit threshold on the encoder supply lets it directly power PNP safety sensors without an external fuse.

Applications

Safe shutdown of a single high-current actuator, contactor coil, or valve bank in an ET 200SP distributed I/O station - for example an E-stop or guard-door circuit that must de-energize one 24 V DC / 8 A load up to PL e / SIL 3.
