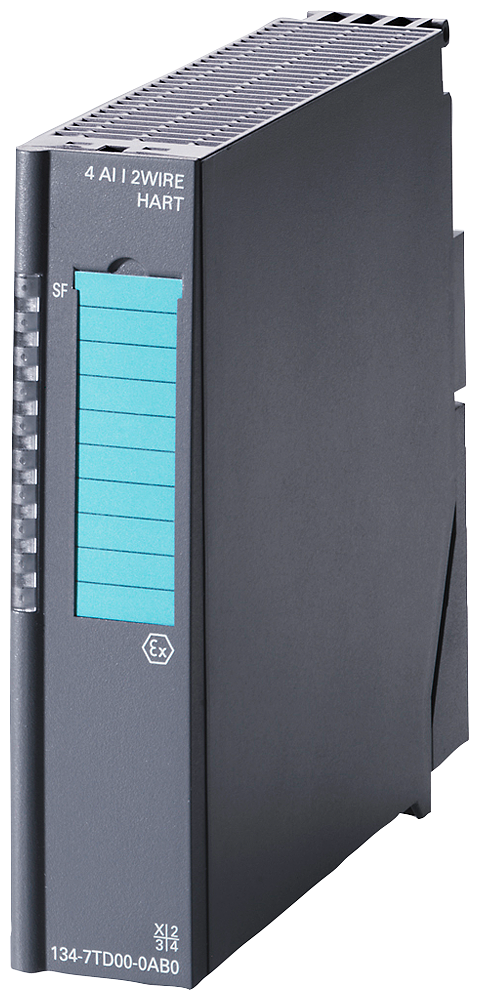

Siemens 6ES7134-7TD00-0AB0 ET200iSP 4AI HART 2-Wire Ex Zone 1 Remote I/O Module

% $-726.21
Siemens 6ES7134-7TD00-0AB0 ET200iSP 4AI HART 2-Wire Remote I/O Module
Siemens 6ES7134-7TD00-0AB0 ET200iSP 4AI HART 2-Wire Remote I/O Module

Siemens 6ES7134-7TD00-0AB0 ET200iSP 4AI HART 2-Wire Ex Zone 1 Remote I/O Module

Brand: Siemens
Reference No: 6ES7134-7TD00-0AB0
Catalog No: 6ES7134-7TD00-0AB0
Series: SIMATIC ET 200SP
Tariff Code (HS): 85389091
Rated Current: 4-20 mA (input range)
Communication: HART protocol V6.0
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$726.21

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6ES7134-7TD00-0AB0 is an ET200iSP electronic module with 4 analog current inputs for 2-wire HART transmitters, certified Ex ib [ia Ga] IIC T4 Gb for ATEX and IECEx Zone 1 hazardous areas. It supports HART protocol version 6.0 over a 4-20 mA signal, with a short-circuit-proof 23 mA transmitter supply per channel and 13-bit resolution.

Technical Specifications

SKU 6ES7134-7TD00-0AB0
Brand Siemens
Series SIMATIC ET200iSP
Product Type Designation 4AI I 2WIRE HART
HW Functional Status 17
Firmware Version V3.0.4
Number of Analog Inputs 4
Input Range 4 mA to 20 mA, 2-wire transducer
Transmitter Supply Current, max. 23 mA per channel, short-circuit proof
Resolution, max. 13 bit (with overrange)
Burden of 2-Wire Transmitter, max. 750 ohm
Supply Voltage (DC) 20.4-28.8 V
Current Consumption, typ. 280 mA
Power Loss, typ. 2.7 W
Cable Length, shielded, max. 500 m
Wire-break Diagnosis Yes, I load less than 3.6 mA
Short-circuit Diagnosis Yes, I load greater than 25 mA
IP Degree of Protection IP30
ATEX Marking II 2 G (1) G Ex ib [ia Ga] IIC T4 Gb, II 2 G (1) D Ex ib [ia IIIC Da] IIC T4 Gb, I M2 Ex ib [ia] I Mb
IECEx Certificate IECEx KEM 05.0006
Connection Method Screw/spring-type terminal
Width x Height x Depth 30 x 129 x 136.5 mm
Net Weight 0.23 kg
Country of Origin DE

Certifications & Standards

  • GL
  • ABS
  • BV
  • DNV

Selection Notes

The 750 ohm burden and 23 mA short-circuit-proof transmitter supply per channel mean this module can power a 2-wire HART transmitter directly over the same loop it reads, without an external barrier for signal power. Choose this HART variant over the plain 4AI TC thermocouple module when the field device is a 4-20 mA loop-powered transmitter rather than a bare thermocouple junction, since HART 6.0 support lets diagnostic and configuration data ride the same current loop.

Technical Details

Short Description
ET200iSP 4AI HART 2-wire module, 4-20mA, HART 6.0, Ex ib Zone 1, 23mA transmitter supply.
Rated Current (Ampere)
4-20 mA (input range)
Mounting Type
Front/rail mounting, ET200iSP
Protection Type
IP30, Ex ib Zone 1/Zone 21
Catalog No
6ES7134-7TD00-0AB0
Standards
Germanischer Lloyd (GL), American Bureau of Shipping (ABS), Bureau Veritas (BV), Det Norske Veritas (DNV)
Delivery Date (Days)
10-15 days
Model Number
6ES7134-7TD00-0AB0
Tariff Code
85389091
