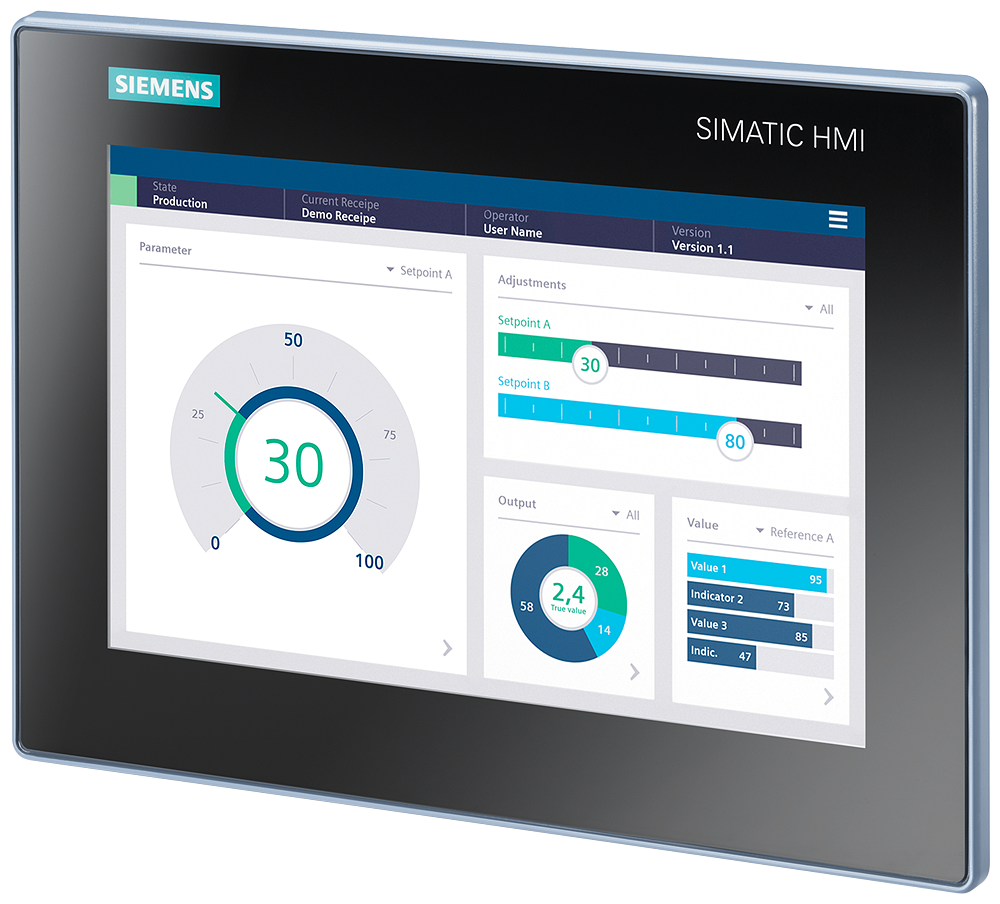

Siemens 6AV2123-3KB32-0AW0 SIMATIC HMI MTP1000 Unified Basic 10-Inch PROFINET Operator Panel

The Siemens 6AV2123-3KB32-0AW0 is a SIMATIC HMI MTP1000 Unified Basic panel with a 10.1-inch widescreen TFT touchscreen, 1280x800 resolution, and 16.7 million colors. It has a PROFINET interface, IP65 protection at the front, and is configurable starting with WinCC Unified Basic V18 Update 3. Power draw is 9.3 W typical at 24 V DC.

Technical Specifications

Certifications & Standards

• CE
• UKCA
• cULus
• RCM
• KC
• DNV
• KRS
• LRS
• Nippon Kaiji Kyokai (Class NK)
• CCS

Selection Notes

Support across the full WinCC Unified and TIA Portal engineering family (Unified Basic, Comfort, PC Engineering, and classic Advanced/Professional) means a project can start on WinCC Unified Basic and later add JavaScript-based task planning or bigger alarm/recipe configurations without swapping hardware. IP65 at the front with NEMA 4/4x when installed supports washdown-adjacent or outdoor-facing mounting, but the rear is only IP20, so the panel still needs a protected cabinet interior behind it. The marine classifications (DNV, KRS, LRS, NK, CCS) make this variant relevant for shipboard control rooms where a standard industrial HMI approval set is not sufficient.

Applications

Machine and process operator interfaces needing a 10-inch multitouch widescreen with PROFINET networking, including panels for marine or offshore installations that require classification society approval alongside standard CE/UL compliance.
