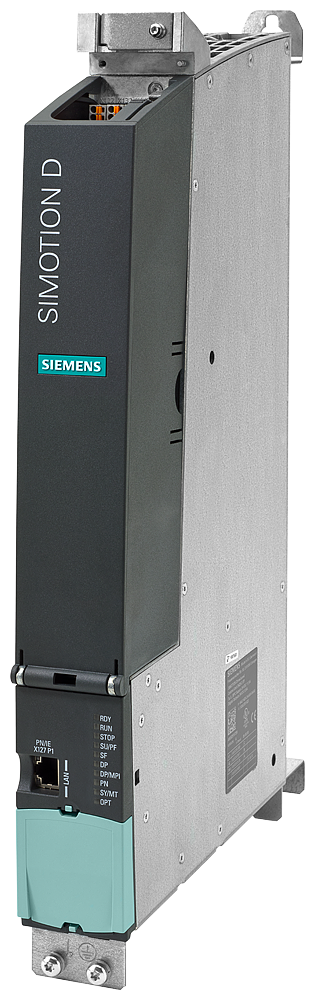

Siemens 6AU1425-2AD00-0AA0 SIMOTION D425-2 DP/PN 16-Axis Motion Controller

The Siemens 6AU1425-2AD00-0AA0 SIMOTION D425-2 DP/PN is a BASIC-performance, Drive-based motion controller that manages up to 16 axes total, including 6 axes of integrated servo or vector drive control, or 12 in V/f mode. It integrates 12 digital inputs, 16 configurable digital I/Os, 4 DRIVE-CLiQ ports, dual PROFIBUS and PROFINET interfaces, and ships with a dual fan/battery module.

Technical Specifications

Selection Notes

This D425-2 variant is BASIC performance, so it fits machines needing up to 16 coordinated axes with millisecond-class PROFIBUS or sub-millisecond PROFINET cycle times rather than the highest-axis-count SIMOTION D4x5 models. Because drive control is integrated, built on SINAMICS S120 CU320-2 firmware, the controller and up to 6 servo axes run in the same unit without a separate SIMOTION-plus-external-drive combination, which matters when panel space or cabling budget is tight. The 16 configurable digital I/Os can each be set as DI, DO, probe input, or cam output, so one module covers both process I/O and high-speed cam-switching duties that would otherwise need a dedicated cam output card.

Applications

Coordinated multi-axis motion control in packaging, printing, and material-handling machines built on SINAMICS S120 drives with PROFINET or PROFIBUS fieldbus.
