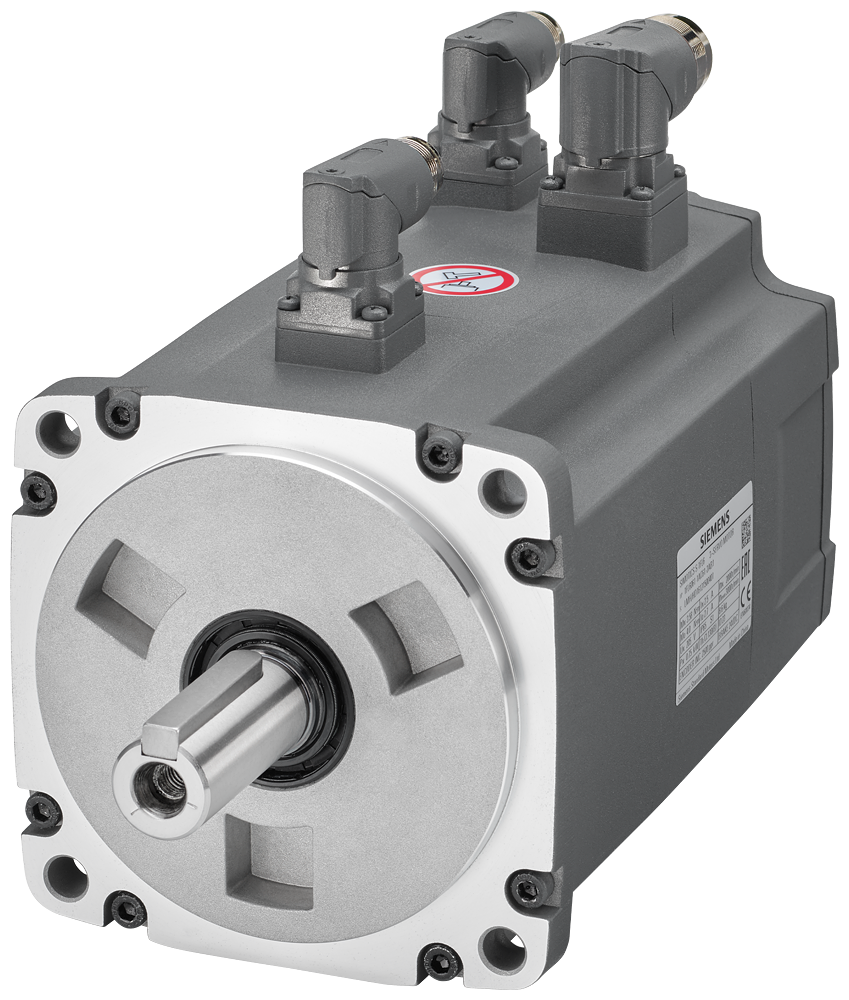

Siemens 1FL6096-1AC61-2AA1 SIMOTICS S-1FL6 Servo Motor 7kW 33.4Nm 400V 3AC

Siemens SIMOTICS S-1FL6 servo motor 1FL6096-1AC61-2AA1 delivers 7 kW rated power at 2000 rpm with 33.4 Nm rated torque, running from a 400 V 3AC supply matched to a SINAMICS V70 or V90 drive. Static torque reaches 40 Nm and the motor tolerates a short-term peak of 90 Nm at 35.6 A. IP65 protection with a sealing ring and a 2500 S/R incremental TTL encoder suit it to enclosed servo-axis applications.

Technical Specifications

Selection Notes

The 2500 S/R incremental TTL encoder on this 1FL6 motor is a simpler feedback interface than the absolute singleturn encoders used on the 1FL2 servo line, which suits axes referenced by a homing routine rather than needing power-loss position retention. Static torque of 40 Nm exceeds the 33.4 Nm rated torque by a wider margin than the equivalent 1FL2310-6AC01-0HB0, giving more headroom for starting under load. Choose this motor when the application is already built around a SINAMICS V70 or V90 drive rather than S200.

Applications

Sized for a SINAMICS V70 or V90 drive at 400 V 3AC, this motor fits single-axis machine tasks needing 33.4 Nm continuous torque and IP65 sealing - material handling, indexing tables, and general servo-axis retrofits within a 90 mm shaft-height frame.
