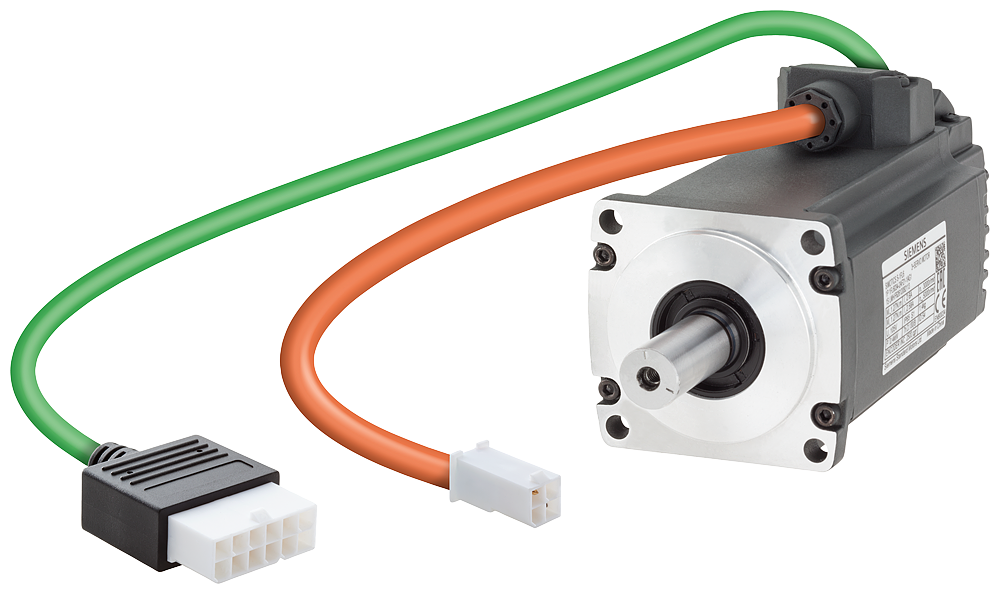

Siemens 1FL6032-2AF21-1AA1 SIMOTICS S-1FL6 0.2kW 230V Servo Motor IP65

The Siemens 1FL6032-2AF21-1AA1 is a SIMOTICS S-1FL6 servo motor rated 0.2 kW at 3000 rpm on a 230 V 3AC supply, with a 30 mm shaft height and 0.64 Nm standstill and rated torque. It carries an IP65-sealed TTL incremental encoder (2500 incr./rev.) and is built to pair with a SINAMICS V90 servo drive.

Technical Specifications

Selection Notes

The 0.64 Nm rated torque and 30 mm shaft height place this at the small end of the S-1FL6 line, sized for light-load axes rather than the higher-torque 1FL6 frames with larger shaft heights. No holding brake is fitted, so a vertical-axis application needs an external brake or counterbalance to hold position on power-down. It is matched specifically to the SINAMICS V90 drive family; check the drive's rated power against the 0.2 kW motor rating before pairing.

Applications

Light-duty servo positioning axes, such as small pick-and-place or indexing mechanisms, driven by a SINAMICS V90.
