Siemens 1FL2310-6AC01-0HB0 SIMOTICS S-1FL2 Servo Motor 7kW 33.4Nm 400V 3AC

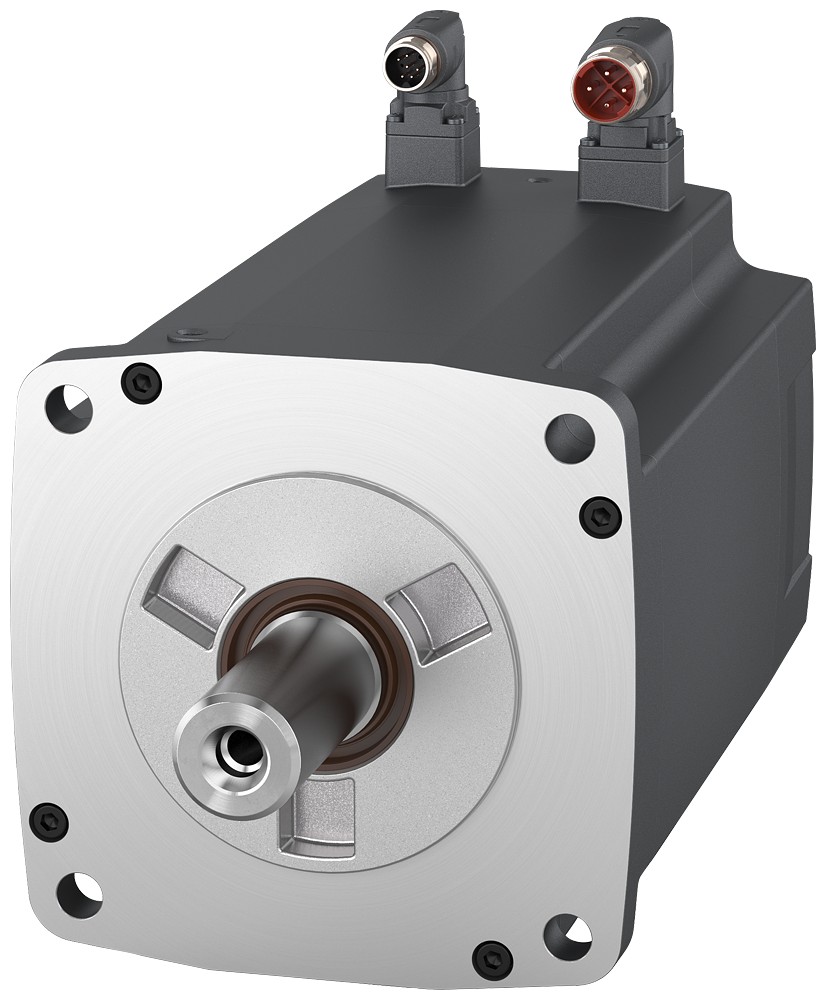

Siemens SIMOTICS S-1FL2 servo motor 1FL2310-6AC01-0HB0 delivers 7 kW rated power at 2000 rpm with 33.4 Nm rated torque, running from a 400 V 3AC supply via a SINAMICS S200 drive. Static torque reaches 35.2 Nm and the motor tolerates a short-term peak of 90 Nm at 35.6 A. IP65 protection with an oil seal and a 17-bit absolute singleturn encoder suit it to enclosed servo-axis applications.

Technical Specifications

Selection Notes

The 293.5 mm body length is 104 mm longer than the 2.5 kW 1FL2310-0AC01-0HB0 in the same 180 mm flange and shaft height 90 mm frame, trading a more compact package for 7 kW rated power and a 90 Nm maximum torque ceiling. The plain shaft with tolerance N and no holding brake means an external brake or counterbalance is needed if the axis must hold position while de-energized. Pick this winding over the lower-power 1FL2 variant when the load needs the higher rated torque and current headroom rather than the shortest possible mounting length.

Applications

Matched to a SINAMICS S200 drive, this motor suits higher-torque single-axis machine tasks - conveyor and indexing drives, press feeds, and other 400 V 3AC servo axes where 33.4 Nm continuous torque is needed within a 180 mm flange footprint.
