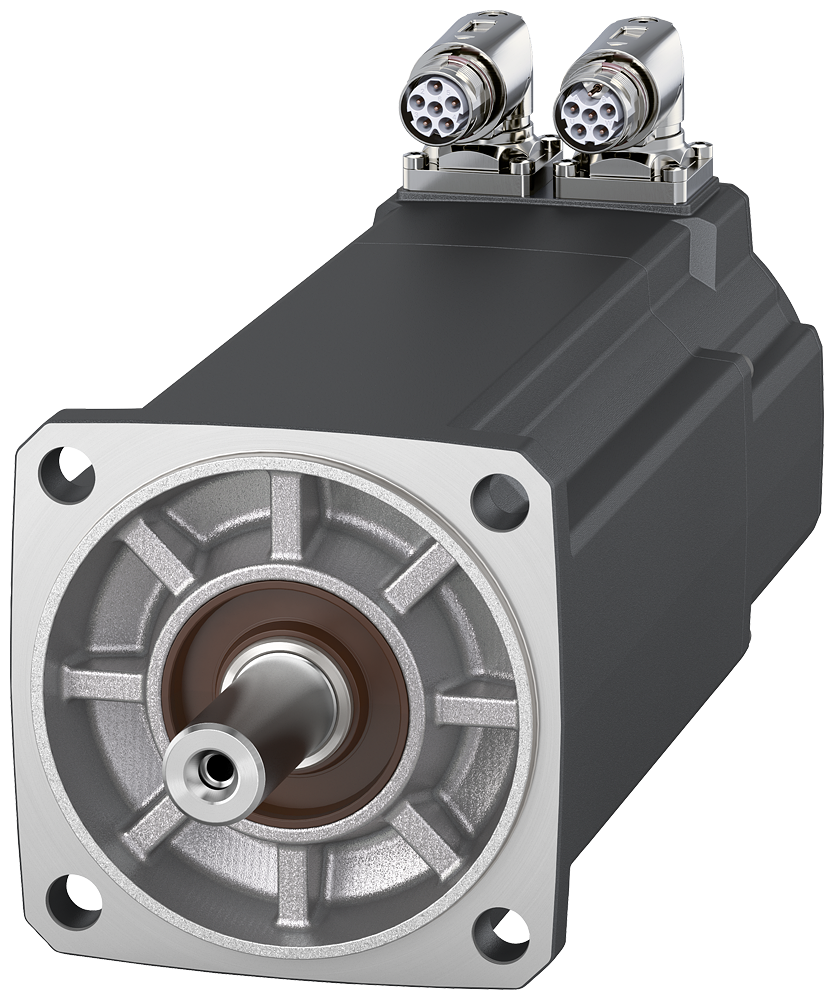

Siemens 1FL2105-4AF01-0HB0 SIMOTICS S-1FL2 400V 2.10kW Servo Motor

The Siemens 1FL2105-4AF01-0HB0 is a SIMOTICS S-1FL2 servo motor for 400 V 3AC supply, rated 6.6 Nm / 2.10 kW at 3,000 rpm with 5.6 A rated current, an 8 Nm standstill torque, and a 17-bit absolute single-turn encoder for use with a SINAMICS S200 drive. Maximum output is 25.30 Nm and 24.0 A for short-duration overload.

Technical Specifications

Selection Notes

This 0HB0 variant carries an angular connector and no holding brake, running on a plain shaft with tolerance N, pick it over a braked variant for horizontal axes where gravity won't move the load at standstill. At 6.6 Nm rated torque and 2.10 kW rated power in a 52 mm shaft height, it's the mid-power point among the S-1FL2 motors matched to the SINAMICS S200 drive family; smaller shaft-height motors in the same series top out well below this torque, and larger shaft-height frames carry more continuous torque for heavier axes.

Applications

Suited to single-axis servo motion on packaging, palletizing, and material-handling equipment driven by a SINAMICS S200, where the 6.6 Nm continuous / 25.3 Nm peak torque covers indexing and pick-and-place loads.
