% €-1.040,36

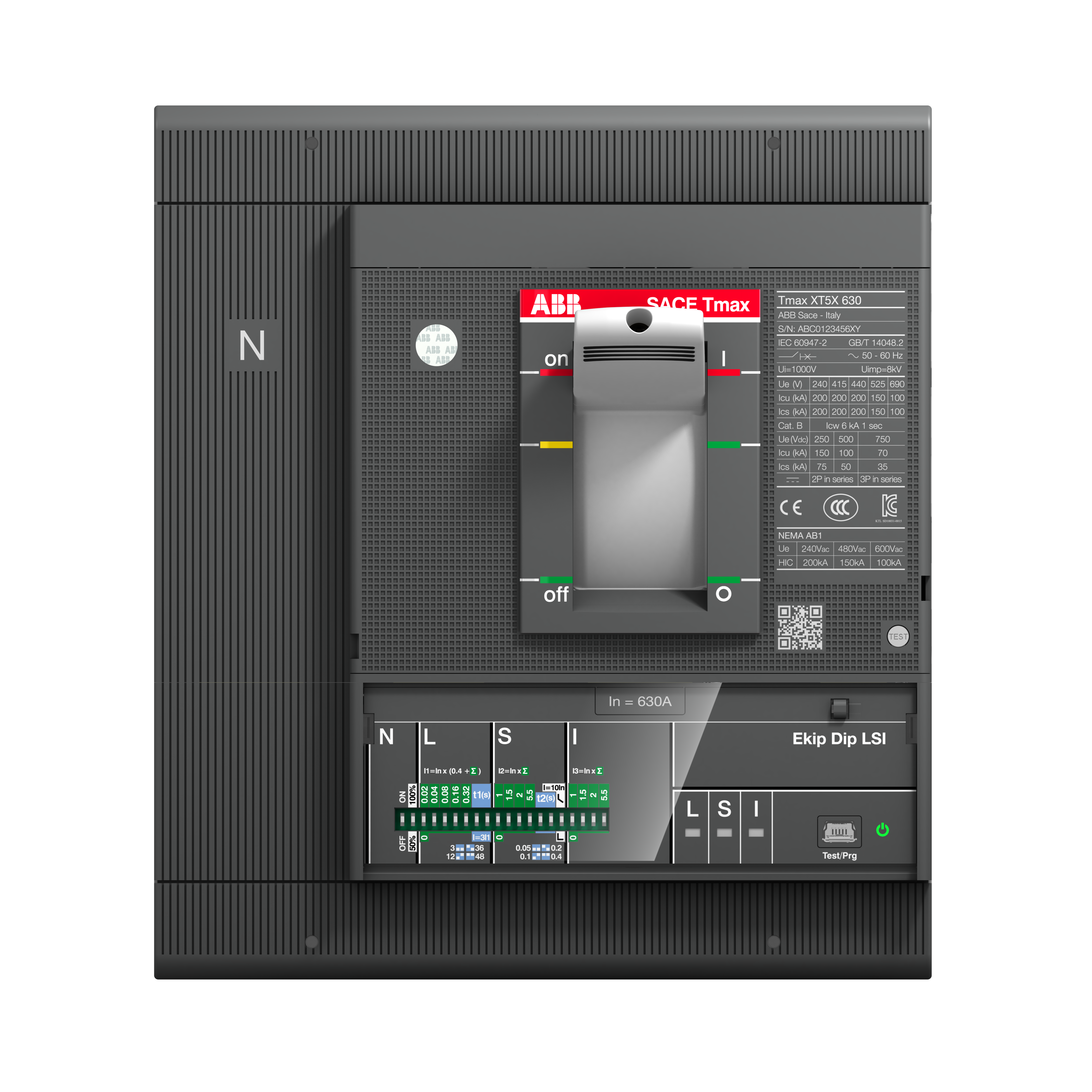

ABB 1SDA100397R1 XT5N 630 Ekip Dip LS/I In=630 4p F F
Brand:
ABB
Reference No:
1SDA100397R1
Catalog No:
XT5N 630 Ekip Dip LS/I In=630 4p F F
Tariff Code (GTIP):
85362090
ABB
€1.040,36
Technical Details
Rated Current (Ampere)
630 A A
Breaking Capacity (kA)
(220 V AC) 70 kA kA
Catalog No
XT5N 630 Ekip Dip LS/I In=630 4p F F
Number of Poles
4P
Model Number
Tmax XT
Height (Product)
205 mm mm
Height (Box)
245 mm mm
Width (Product)
186 mm mm
Width (Box)
250 mm mm
Depth (Product)
103.5 mm mm
Depth (Box)
285 mm mm
Weight (Product)
6.4 kg kg
Weight (Box)
6.888 kg kg
Tariff Code
85362090
