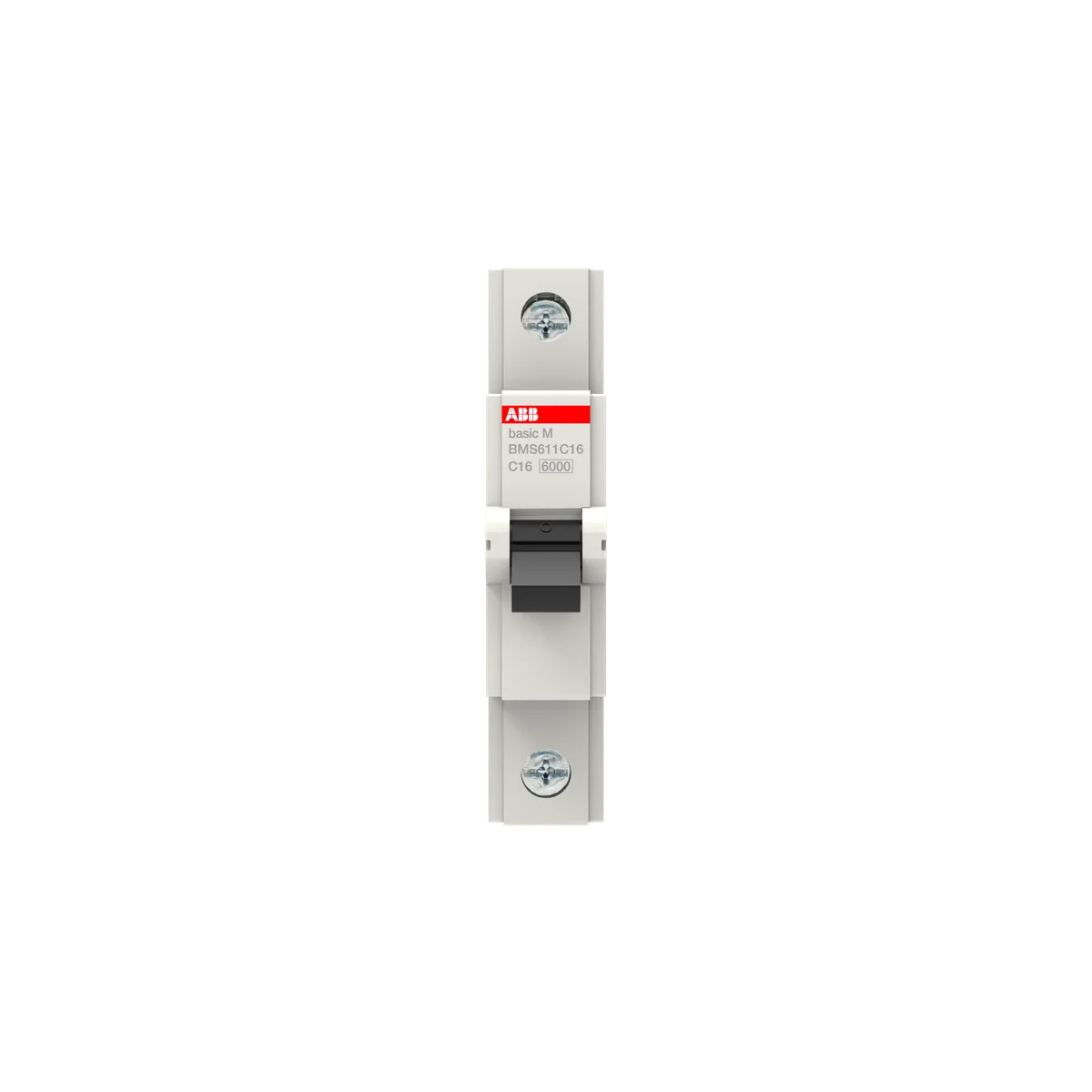

ABB 2CDS651061R0164 BMS611C16 1P 16A 6kA C-Curve DIN Rail Miniature Circuit Breaker

The ABB BMS611C16 miniature circuit breaker (MCB), SKU 2CDS651061R0164, is a 1-pole, 16 A, 6 kA breaking capacity device from the ABB Basic M BMS series, designed for overcurrent and short-circuit protection in residential, commercial, and light industrial installations. Rated at 230 V AC per IEC 60898-1 and 440 V per IEC 60947-2, the BMS611C16 mounts on standard DIN rail and delivers reliable, compact protection in a 17.5 mm wide housing.

Technical Specifications

Certifications & Standards

• IEC 60898-1: Standard for circuit breakers for overcurrent protection for household and similar installations
• IEC 60947-2: Standard for low-voltage switchgear and controlgear — circuit breakers
• IEC/EN 60664-1: Insulation coordination for equipment within low-voltage systems
• IEC/EN 60664: Insulation coordination for equipment within low-voltage supply systems
• EN 60664: European harmonised insulation coordination standard
• IEC 60898: Circuit breakers for overcurrent protection (general series)
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH regulation on chemical substances
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
• TSCA: Compliant with US Toxic Substances Control Act requirements

Applications & Use Cases

• Branch circuit protection in residential and commercial distribution boards
• Control panel and industrial automation cabinet protection
• Single-phase load protection for lighting, socket, and appliance circuits
• Machine building and light industrial equipment protection
• DIN rail installations requiring compact 17.5 mm wide MCB format
