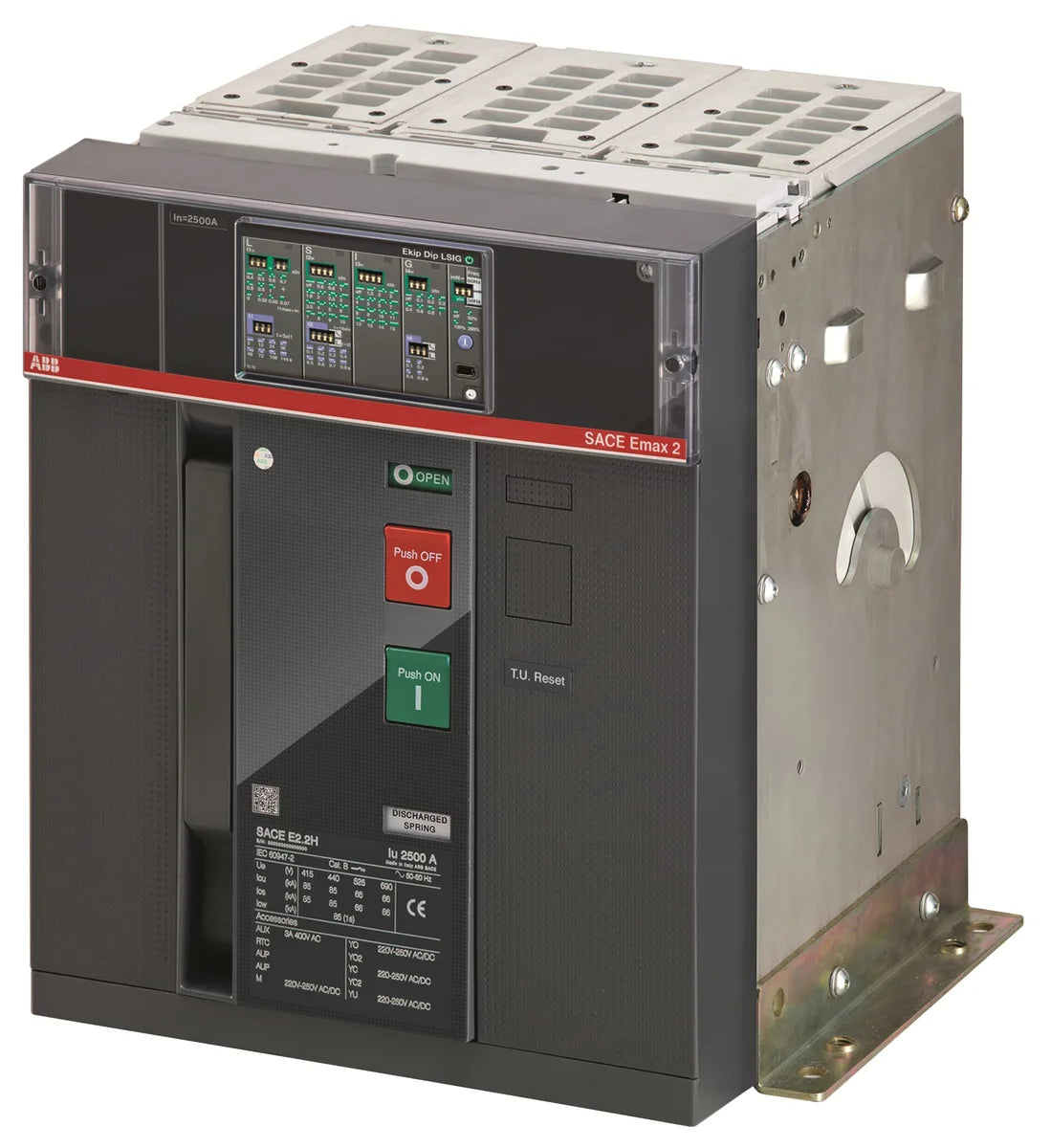

ABB 1SDA071062R1 E2.2N 2500 Ekip Dip LSI 3p F HR 2500A 3P 66kA Fixed Power Circuit Breaker

The ABB 1SDA071062R1 — catalog number E2.2N 2500 Ekip Dip LSI 3p F HR — is a 2500 A, 3-pole, fixed-mounted air power circuit breaker from the SACE Emax2 E2.2 series, rated for a breaking capacity of 66 kA at 400 V AC. Engineered for transformer, generator, and installation protection, this breaker features the Ekip Dip LSI (Long-time, Short-time, Instantaneous) tripping unit, delivering precise, adjustable protection for demanding industrial power distribution applications.

Technical Specifications

Certifications & Standards

• CE: Compliant with EU machinery and low-voltage directives for European market use
• IEC: Designed and tested in accordance with IEC standards for air circuit breakers
• UL 2799: UL-certified to UL 2799 for North American market acceptance
• ATEX: Certified for use in potentially explosive atmospheres per ATEX directive
• CSA: Canadian Standards Association certified for electrical safety
• VDE: VDE-certified to German and European electrotechnical standards
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU & Amendment 2015/863: Full RoHS2 compliance including updated substance restrictions
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling

Applications & Use Cases

The E2.2N 2500 Ekip Dip LSI 3p F HR (ABB 1SDA071062R1) is designed for main and sub-main power distribution switchboards in industrial facilities, commercial buildings, data centres, and infrastructure projects. Its high breaking capacity of 66 kA makes it suitable for protection of large transformers, standby generators, and incomer/feeder circuits in high-fault-level installations. The Ekip Dip LSI tripping unit provides field-adjustable overload (L), short-circuit (S), and instantaneous (I) protection thresholds, supporting coordination with downstream MCCBs and MCBs. The fixed (F) mounting configuration ensures a robust, permanent installation in main distribution panels and motor control centres (MCCs).
