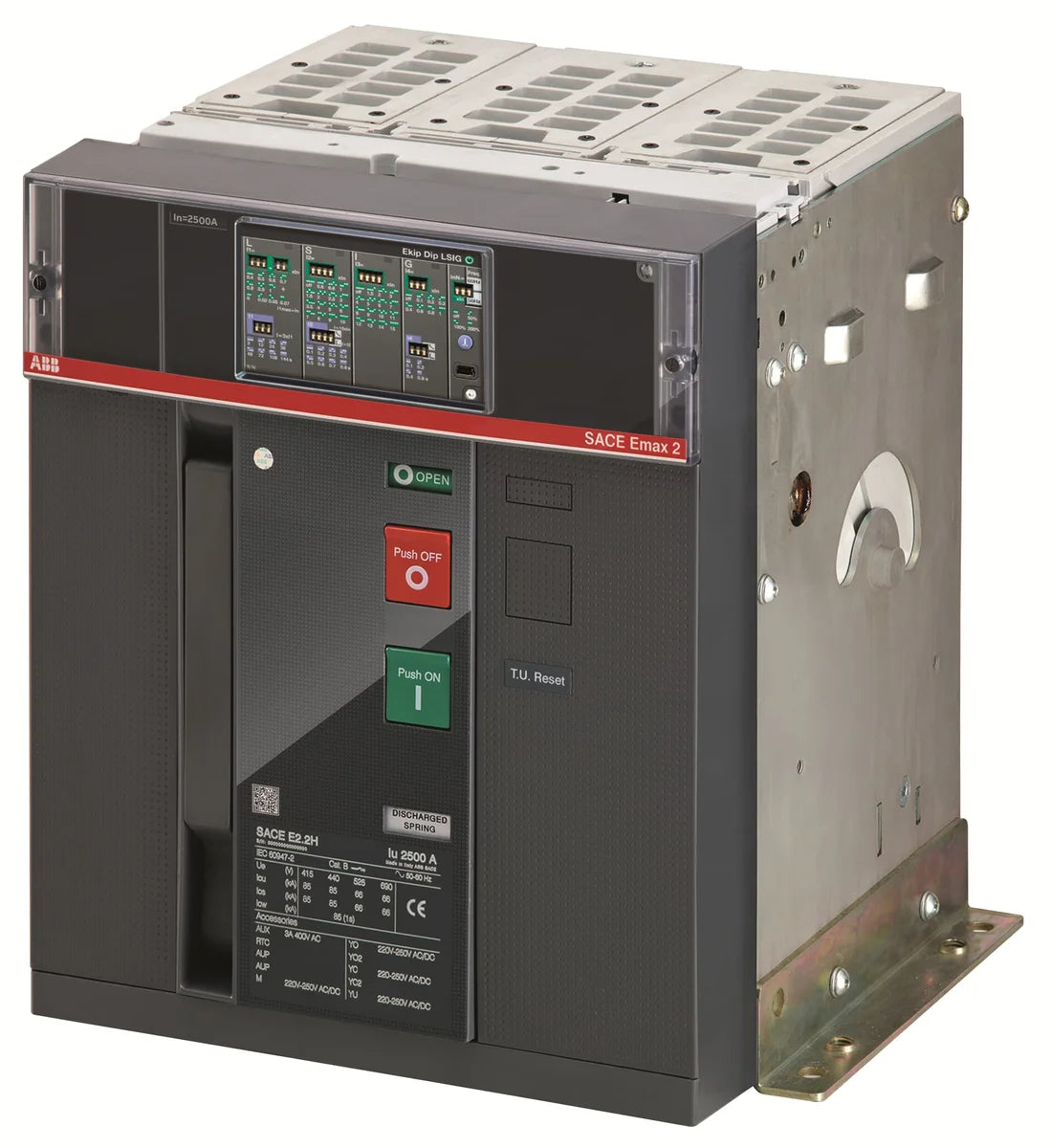

ABB 1SDA071052R1 E2.2H 2000 Ekip Dip LSI 3p F HR 2000A 3P 100kA Power Circuit Breaker

The ABB 1SDA071052R1 E2.2H 2000 Ekip Dip LSI 3p F HR is a heavy-duty 2000A, 3-pole fixed-mounted air circuit breaker from the SACE Emax2 E2.2H series, delivering a breaking capacity of 100 kA at 400 V AC. The E2.2H 2000 Ekip Dip LSI 3p F HR is engineered for transformer, generator, and installation protection in demanding industrial power distribution systems, combining the Ekip Dip LSI protection unit with a robust fixed (HR) frame for reliable, long-service operation.

Technical Specifications

Certifications & Standards

• CE: Compliant with EU harmonised legislation for electrical equipment
• IEC: Manufactured and tested in accordance with IEC standards for circuit breakers
• UL 2799: Listed under UL 2799 for electrical systems
• ATEX: Approved for use in potentially explosive atmospheres
• CSA: Certified to Canadian Standards Association requirements
• VDE: Tested and approved by VDE (Verband der Elektrotechnik)
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances
• REACH: Compliant with EU REACH regulation on chemical substances
• EU Directive 2011/65/EU: Restriction of hazardous substances in electrical equipment
• Amendment 2015/863: Compliant with the 2015/863 amendment to the RoHS Directive
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Transformer protection in industrial power distribution panels and switchgear
• Generator feeder protection in data centres, hospitals, and critical infrastructure
• Main incomer protection for large industrial installations and manufacturing facilities
• Bus coupler and tie-breaker duties in medium and large MV/LV substations
• Mining, oil & gas, and heavy process industry power distribution (ATEX rated)
