Mersen P1023076 1.002.661 NH fuse-switch disconnector MULTIBLOC® Size 3 630A 4-Pole switching Bottom Fitting/panel Connection Screw M12

Free Shipping
% $-1,813.45
Mersen P1023076 Fuse Switch Disconnector
Mersen P1023076 Fuse Switch Disconnector

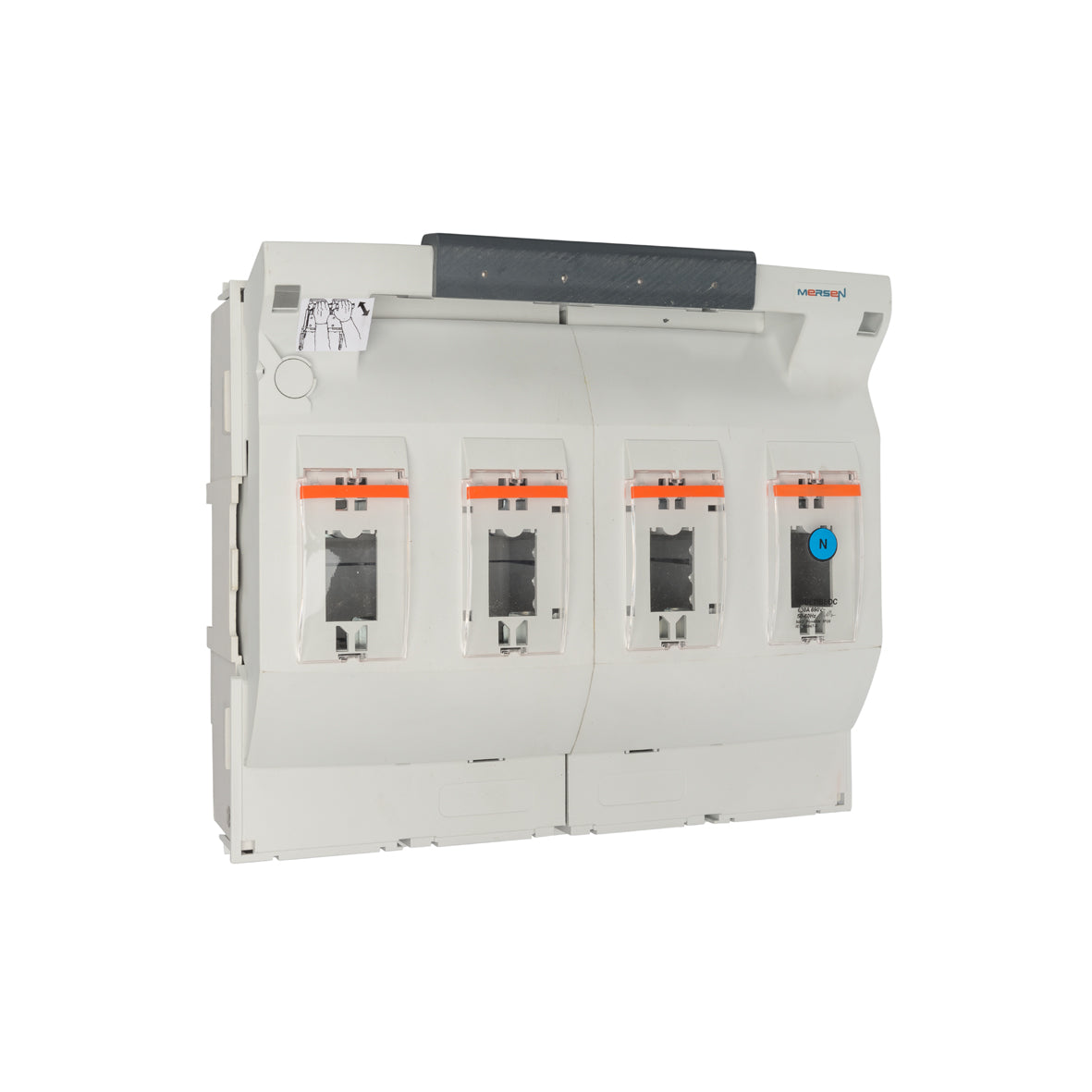

Mersen P1023076 1.002.661 NH fuse-switch disconnector MULTIBLOC® Size 3 630A 4-Pole switching Bottom Fitting/panel Connection Screw M12

Brand: Mersen
Reference No: P1023076
Catalog No: 1.002.661
Series: MULTIBLOC® 3.ST8 , Size 3, 630A, 690VAC, Design for Bottom Fitting, 3-,4-pole
Tariff Code (HS): 85362090
Rated Current: 630 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$1,813.45

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 1.002.661 (P1023076) is a nH fuse-switch disconnector MULTIBLOC® Size 3 630A 4-Pole switching Bottom Fitting/panel Connection Screw M12 from the MULTIBLOC® 3.ST8 , Size 3, 630A, 690VAC, Design for Bottom Fitting, 3-,4-pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 1.002.661
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Ampere Rating 630 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 630 A AC 22 B @ Ue = AC 500 V; Ie = 630 A AC 21 B @ Ue = AC 690 V; Ie = 500 A
Switchability 4-pole switching
ROHS Compliant Yes
AC or DC AC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 50kA@Ue = AC 690 V; Ie = 500 A
Fuse Size 3
Design Details with ready fitted speacial solid link as neutral conductor in pole 4 for leading and lagging switching
Number of Poles 3-Pole+N
Degree of Pollution 3
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 18 kA / 1 s
Max Power dissipation of Fuse Links Pn 48 W
Max Power dissipation of Solid Links Pn 17.5 W
Power Dissipation by Ith without Fuse-Links 53 W
Power Dissipation by Ith without Solid Links 81 W
Rated short circuit making capacity with solid links Icm 18.6 kA
Installation Mounting Bottom Fitting/panel
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 630 A
Conventional Free Air thermal Current - Solid Links 780 A
Product Width 331.5 mm
Product Length 153.9 mm
Product Height 299 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 7.71 kg
Sell Pack Width 320 mm
Sell Pack Length 350 mm
Sell Pack Height 170 mm
Product Weight 7.71 kg
EAN/UPC 4027597039622

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIBLOC® Size 3 630A 4-Pole switching Bottom Fitting/panel Connection Screw M12
Rated Current (Ampere)
630 A
Rated Voltage (VAC)
690 V
Mounting Type
Bottom Fitting/panel
Catalog No
1.002.661
Standards
CE, RoHS, UKCA, REACH
Model Number
1.002.661
Tariff Code
85362090
