Mersen M1023258 Fuse Switch Disconnector
Mersen M1023258 Fuse Switch Disconnector

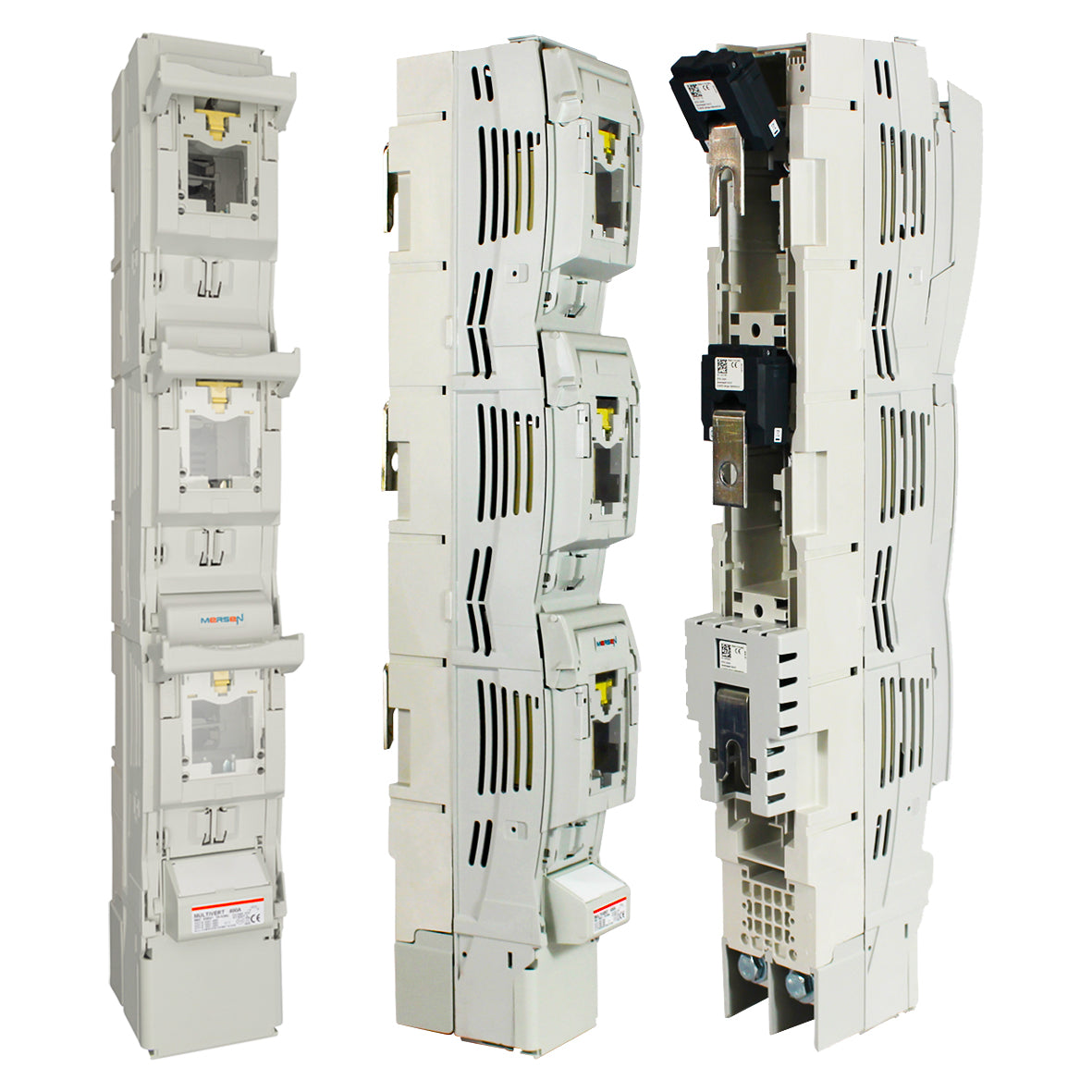

Mersen M1023258 1.370.076 NH fuse-switch disconnector MULTIVERT® Size 3 630A 1x3-Pole switching Bus bar system 185mm V-terminal ct3P c.

Brand: Mersen
Reference No: M1023258
Catalog No: 1.370.076
Series: MULTIVERT® 630A and i-Xtensio 630A, Size 3, 690VAC
Tariff Code (HS): 85362090
Rated Current: 630 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$1,093.48

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 1.370.076 (M1023258) is a nH fuse-switch disconnector MULTIVERT® Size 3 630A 1x3-Pole switching Bus bar system 185mm V-terminal ct3P c. from the MULTIVERT® 630A and i-Xtensio 630A, Size 3, 690VAC range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 1.370.076
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Ampere Rating 630 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 630 A AC 22 B @ Ue = AC 500 V; Ie = 630 A AC 21 B @ Ue = AC 690 V; Ie = 630 A
Switchability 1x3-pole switching
ROHS Compliant Yes
AC or DC AC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 630 A / 80kA@Ue = AC 500 V; Ie = 630 A / 80kA@Ue = AC 690 V; Ie = 500 A
Fuse Size 3
Design Details MULTIVERT® 1.370.000 with integrated C.T. 600/5A, 5,00 VA, class 0,5; calibrated, for triple pole measurement
Number of Poles 3-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 12.6 kA / 1 s
Max Power dissipation of Fuse Links Pn 48 W
Max Power dissipation of Solid Links Pn 17.5 W
Power Dissipation by Ith without Fuse-Links 95 W
Rated short circuit making capacity with solid links Icm 16 kA
Installation Mounting Bus bar system 185 mm
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 630 A
Conventional Free Air thermal Current - Solid Links 800 A
Product Width 98 mm
Product Length 190 mm
Product Height 685 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 5.9 kg
Sell Pack Width 100 mm
Sell Pack Length 688 mm
Sell Pack Height 195 mm
Product Weight 5.9 kg
EAN/UPC 9008567008355

Certifications & Compliance

  • CE
  • RoHS
  • UKCA
  • REACH

Technical Details

Short Description
NH fuse-switch disconnector MULTIVERT® Size 3 630A 1x3-Pole switching Bus bar system 185mm V-terminal ct3P c.
Rated Current (Ampere)
630 A
Rated Voltage (VAC)
690 V
Mounting Type
Bus bar system 185 mm
Catalog No
1.370.076
Standards
CE, RoHS, UKCA, REACH
Model Number
1.370.076
Tariff Code
85362090
