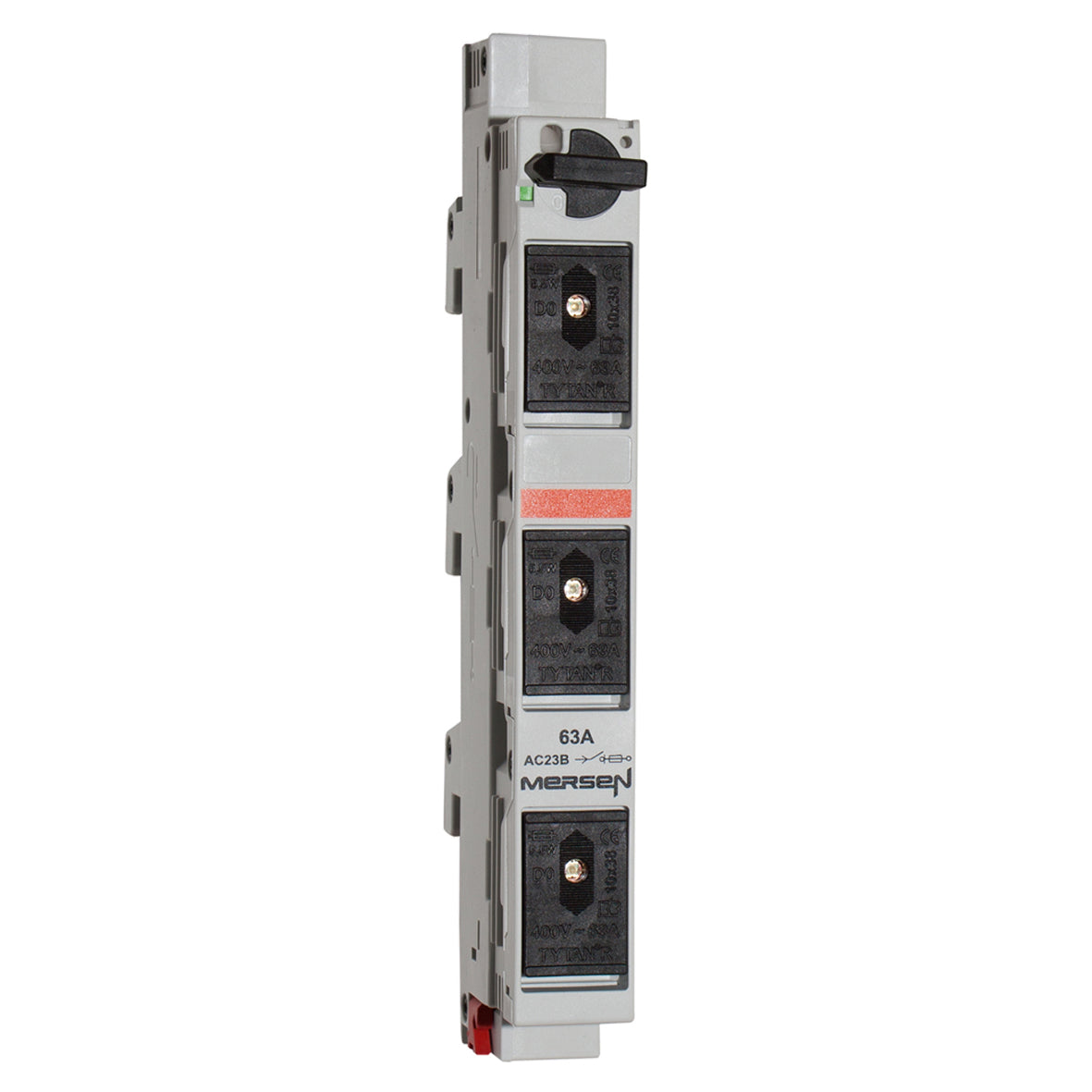

Mersen M1006399 1.002.602 DIN D0 Switch Disconnector MULTIFIX® Size D02 400VAC 63A 3-Pole switching , width 27mm

Name: Mersen M1006399 1.002.602 DIN D0 Switch Disconnector MULTIFIX® Size D02 400VAC 63A 3-Pole switching , width 27mm
Brand: Mersen
SKU: M1006399
Price: 226.47 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: M1006399

Catalog No: 1.002.602

Series: MULTIFIX® 60 , D02 Vertical Switch Fuse Disconnector 63A, 400VAC, Triple Pole

Tariff Code (HS): 85389099

Rated Current: 63 A

Rated Voltage: 400 V

Stock: 0

Shipping Origin: Turkey EXW

$226.47

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen 1.002.602 (M1006399) is a dIN D0 Switch Disconnector MULTIFIX® Size D02 400VAC 63A 3-Pole switching , width 27mm from the MULTIFIX® 60 , D02 Vertical Switch Fuse Disconnector 63A, 400VAC, Triple Pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	1.002.602
Rated voltage AC IEC	400 V
Ampere Rating	63 A
Utilization Category	AC 22 B @ Ue = AC 400 V; Ie = 25 A
Switchability	3-pole switching
ROHS Compliant	Yes
AC or DC	AC
Short Circuit Current Rating (SCCR)	50 kA@Ue = AC 400 V; Ie = 63 A
Fuse Size	D02
Design Details	Cage Clamp
Number of Poles	3-Pole
Degree of Pollution	3
Rated Impulse Withstand Voltage	6 kV
Max Power dissipation of Fuse Links Pn	5.5 W
Installation Mounting	Bus Bar Installation
Product group	Bus Bar Systems
Conventional Free Air thermal Current With Fuse-Links Ith	63 A
Product Width	27 mm
Product Length	102 mm
Product Height	226 mm
Sell Pack Quantity	3 EA
Sell Pack Weight	1.05 kg
Sell Pack Width	90 mm
Sell Pack Length	245 mm
Sell Pack Height	135 mm
Product Weight	0.35 kg
EAN/UPC	9008567002247

Certifications & Compliance

CE
RoHS
UKCA
REACH

Technical Details

Short Description

DIN D0 Switch Disconnector MULTIFIX® Size D02 400VAC 63A 3-Pole switching , width 27mm

Rated Current (Ampere)

63 A

Rated Voltage (VAC)

400 V

Mounting Type

Bus Bar Installation

Catalog No

1.002.602

Standards

CE, RoHS, UKCA, REACH

Model Number

1.002.602

Tariff Code

85389099
