Mersen K1069371 Fuse Switch Disconnector

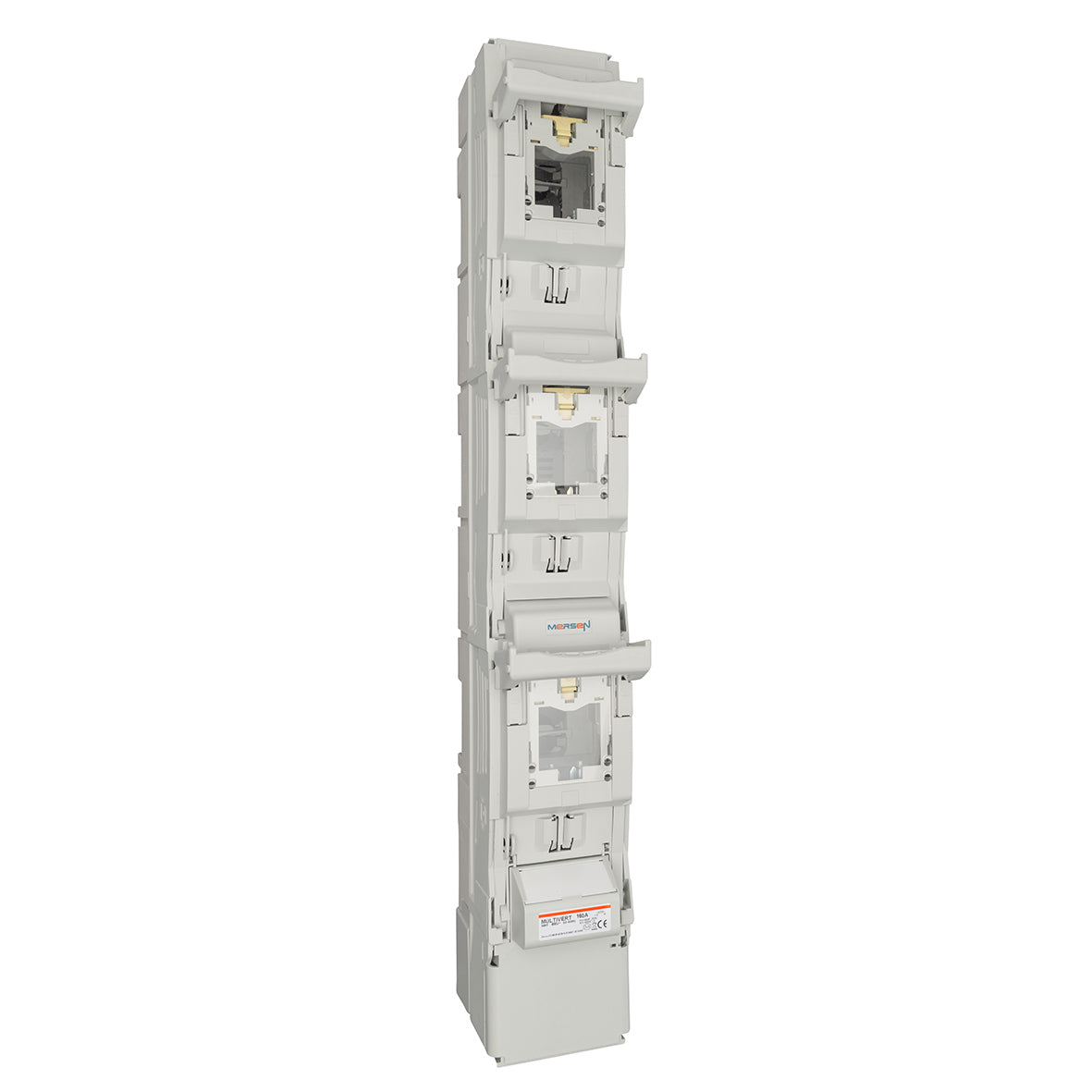

Mersen K1069371 8.120.000 NH fuse-switch disconnector MULTIVERT® Size 1 160A 3x1-Pole switching Bus bar system 185mm V-terminal

Name: Mersen K1069371 8.120.000 NH fuse-switch disconnector MULTIVERT® Size 1 160A 3x1-Pole switching Bus bar system 185mm V-terminal
Brand: Mersen
SKU: K1069371
Price: 513.36 USD
Availability: OutOfStock
Rating: 5.0 (10 reviews)

Brand: Mersen

Reference No: K1069371

Catalog No: 8.120.000

Series: MULTIVERT® 800VAC Size 1, 160A

Tariff Code (HS): 85362090

Rated Current: 160 A

Rated Voltage: 800 V

Stock: 0

Shipping Origin: Turkey EXW

$513.36

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

Description

The Mersen 8.120.000 (K1069371) is a nH fuse-switch disconnector MULTIVERT® Size 1 160A 3x1-Pole switching Bus bar system 185mm V-terminal from the MULTIVERT® 800VAC Size 1, 160A range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No	8.120.000
Frequency (Hz)	50 ... 60 Hz
Rated voltage AC IEC	800 V
Ampere Rating	160 A
Utilization Category	AC 21 B @ Ue = 800 V; Ie = 160 A
Switchability	3x1-pole switching
ROHS Compliant	Yes
AC or DC	AC
Short Circuit Current Rating (SCCR)	Ue=AC 800 V; Ie=160 A 10kA
Fuse Size	1
Number of Poles	3-Pole
Degree of Pollution	3
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Max Power dissipation of Fuse Links Pn	23 W
Power Dissipation by Ith without Fuse-Links	15 W
Installation Mounting	Bus bar system 185 mm
Product group	IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith	160 A
Product Width	98 mm
Product Length	190 mm
Product Height	685 mm
Sell Pack Quantity	1 EA
Sell Pack Weight	4.38 kg
Sell Pack Width	100.1 mm
Sell Pack Length	688.1 mm
Sell Pack Height	195.1 mm
Product Weight	4.38 kg
EAN/UPC	9008567015261

Certifications & Compliance

CE
RoHS
UKCA
REACH

Technical Details

Short Description

NH fuse-switch disconnector MULTIVERT® Size 1 160A 3x1-Pole switching Bus bar system 185mm V-terminal

Rated Current (Ampere)

160 A

Rated Voltage (VAC)

800 V

Mounting Type

Bus bar system 185 mm

Catalog No

8.120.000

Standards

CE, RoHS, UKCA, REACH

Model Number

8.120.000

Tariff Code

85362090

Mersen K1069371 8.120.000 NH fuse-switch disconnector MULTIVERT® Size 1 160A 3x1-Pole switching Bus bar system 185mm V-terminal
