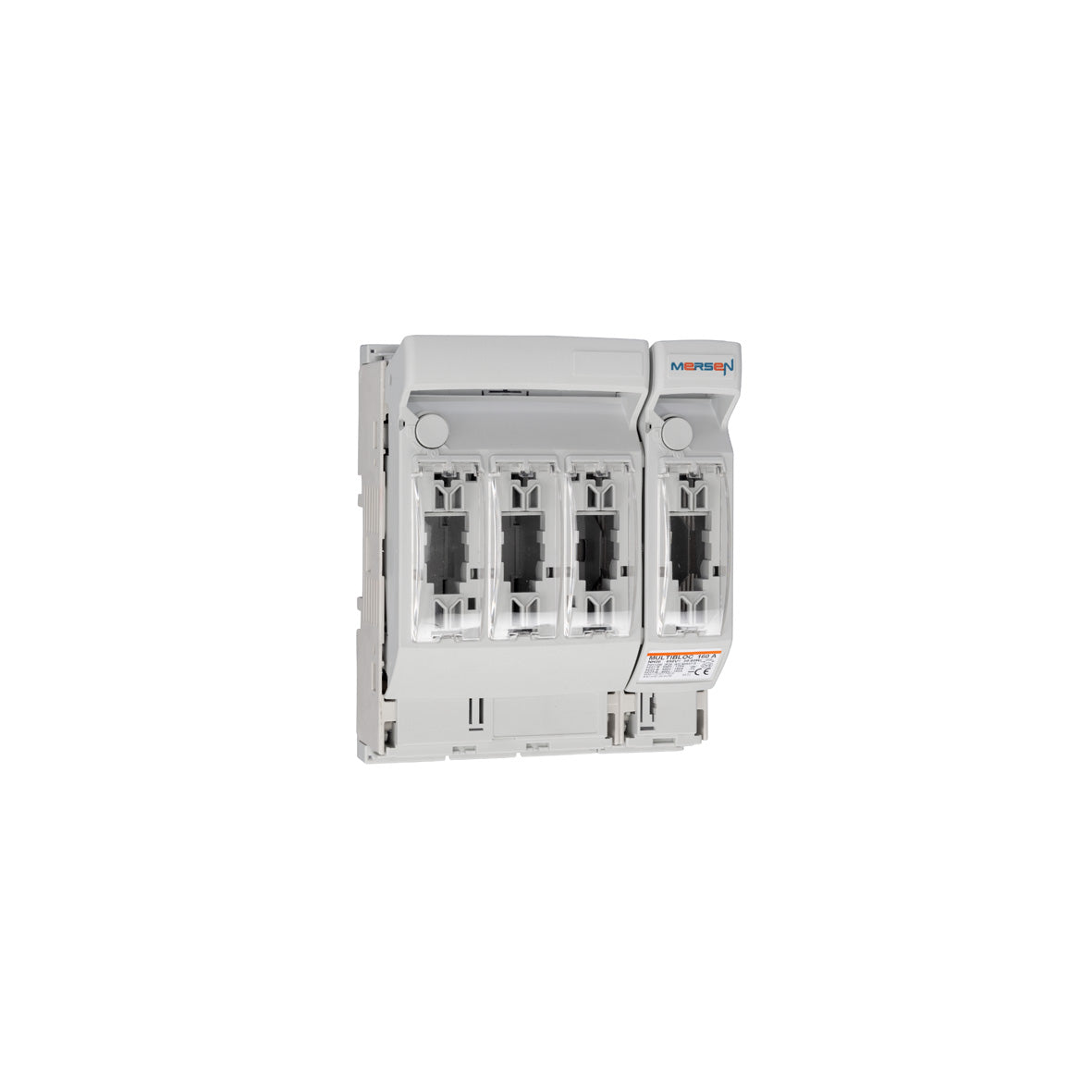

Mersen J1023002 1.000.141 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 4-Pole switching Bottom Fitting/panel Connection Screw M8 right

% $-166.30

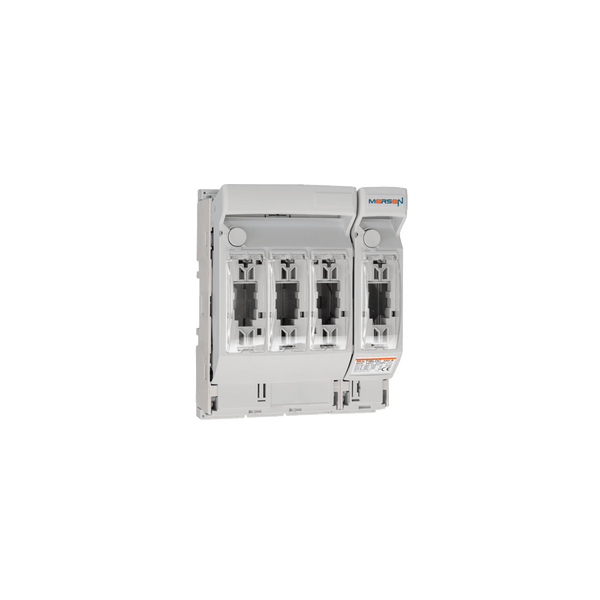

Mersen J1023002 Fuse Switch Disconnector
Mersen J1023002 Fuse Switch Disconnector
Mersen J1023002 Fuse Switch Disconnector
Mersen J1023002 Fuse Switch Disconnector

Mersen J1023002 1.000.141 NH fuse-switch disconnector MULTIBLOC® Size 00 160A 4-Pole switching Bottom Fitting/panel Connection Screw M8 right

Brand: Mersen
Reference No: J1023002
Catalog No: 1.000.141
Series: MULTIBLOC® 00.ST8 , Size 00 160A, 690VAC Bottom Fitting, 1-,2-,4-pole
Tariff Code (HS): 85362090
Rated Current: 160 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$166.30

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 1.000.141 (J1023002) is a nH fuse-switch disconnector MULTIBLOC® Size 00 160A 4-Pole switching Bottom Fitting/panel Connection Screw M8 right from the MULTIBLOC® 00.ST8 , Size 00 160A, 690VAC Bottom Fitting, 1-,2-,4-pole range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 1.000.141
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Rated voltage DC IEC 220 V
Ampere Rating 160 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 160 A AC 22 B @ Ue = AC 500 V; Ie = 160 A AC 21 B @ Ue = AC 690 V; Ie = 125 A
Switchability 4-pole switching
AC or DC AC/DC
Short Circuit Current Rating (SCCR) 80kA@Ue = AC 400 V; Ie = 160 A / 80kA@Ue = AC 500 V; Ie = 160 A / 50kA@ Ue = AC 690 V; Ie = 125 A
Fuse Size 00
Design Details pole 4 right side
Number of Poles 4-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 4 kA / 1 s
Max Power dissipation of Fuse Links Pn 12 W
Max Power dissipation of Solid Links Pn 1.2 W
Power Dissipation by Ith without Fuse-Links 11 W
Power Dissipation by Ith without Solid Links 17 W
Rated short circuit making capacity with solid links Icm 6.2 kA
Installation Mounting Bottom Fitting/panel
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 160 A
Conventional Free Air thermal Current - Solid Links 200 A
Product Width 150 mm
Product Length 84 mm
Product Height 184 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 1.04 kg
Sell Pack Width 160 mm
Sell Pack Length 200 mm
Sell Pack Height 90 mm
Product Weight 1.04 kg
EAN/UPC 4027597021252

Certifications & Compliance

  • REACH
  • CE
  • RoHS
  • UKCA

Technical Details

Short Description
NH fuse-switch disconnector MULTIBLOC® Size 00 160A 4-Pole switching Bottom Fitting/panel Connection Screw M8 right
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Bottom Fitting/panel
Catalog No
1.000.141
Standards
REACH, CE, RoHS, UKCA
Model Number
1.000.141
Tariff Code
85362090
