Mersen C1023157 1.003.307 NH fuse-switch disconnector MULTIVERT® Size 00 160A 1x3-Pole switching Clamp Strap / Screw top terminal clamp straps M8

% $-176.99

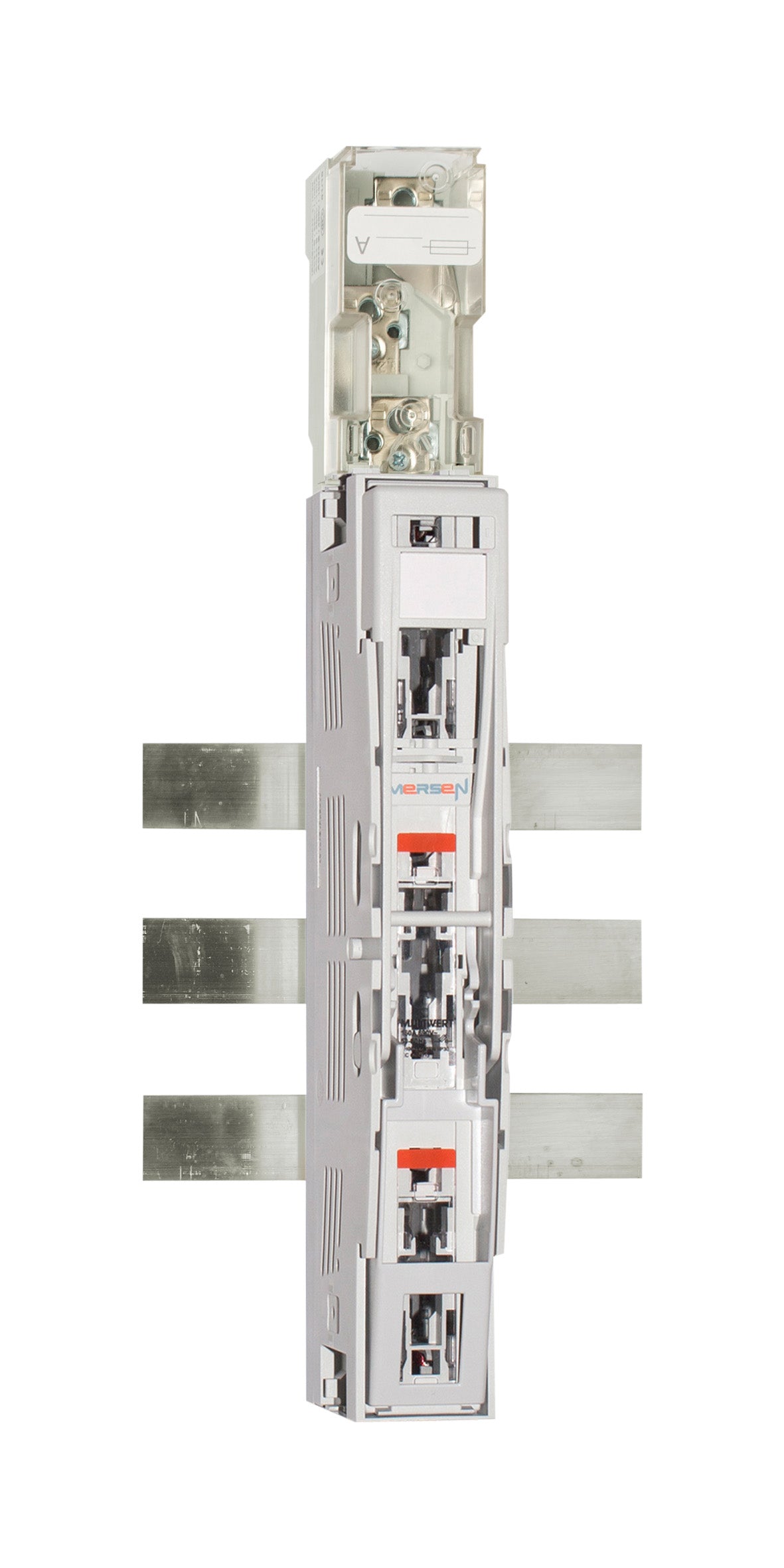

Mersen C1023157 Fuse Switch Disconnector
Mersen C1023157 Fuse Switch Disconnector

Mersen C1023157 1.003.307 NH fuse-switch disconnector MULTIVERT® Size 00 160A 1x3-Pole switching Clamp Strap / Screw top terminal clamp straps M8

Brand: Mersen
Reference No: C1023157
Catalog No: 1.003.307
Series: MULTIVERT® 160A/60mm, Size 00, 690VAC, Triple Pole Switching
Tariff Code (HS): 85362090
Rated Current: 160 A
Rated Voltage: 690 V
Stock: 0
Shipping Origin: Turkey EXW
$176.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Mersen 1.003.307 (C1023157) is a nH fuse-switch disconnector MULTIVERT® Size 00 160A 1x3-Pole switching Clamp Strap / Screw top terminal clamp straps M8 from the MULTIVERT® 160A/60mm, Size 00, 690VAC, Triple Pole Switching range. Genuine Mersen product, supplied worldwide by Stoklink with export shipping from Turkey.

Technical Specifications

Catalogue No 1.003.307
Frequency (Hz) 50 ... 60 Hz
Rated voltage AC IEC 690 V
Ampere Rating 160 A
Utilization Category AC 23 B @ Ue = AC 400 V; Ie = 160 A AC 22 B @ Ue = AC 500 V; Ie = 160 A AC 22 B @ Ue = AC 690 V; Ie = 100 A DC 21 B @ Ue = DC 220 V; Ie = 160 A DC 21 B @ Ue = DC 440 V; Ie = 100 A
Switchability 1x3-pole switching
AC or DC AC
Short Circuit Current Rating (SCCR) 120kA@Ue = AC 400 V; Ie = 160 A / 120kA@Ue = AC 500 V; Ie = 160 A / 50kA@Ue = AC 690 V; Ie = 100 A
Fuse Size 00
Design Details Clamp Strap / Screw top terminal
Number of Poles 3-Pole
Degree of Pollution 3
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 1000 V
Rated SC Withstand 4.5 kA / 1 s
Max Power dissipation of Fuse Links Pn 12 W
Max Power dissipation of Solid Links Pn 1.2 W
Power Dissipation by Ith without Fuse-Links 18 W
Power Dissipation by Ith without Solid Links 44 W
Rated short circuit making capacity with solid links Icm 4.5 kA
Installation Mounting Bus bar system 60 mm
Product group IEC Fuse Switch Disconnectors
Conventional Free Air thermal Current With Fuse-Links Ith 160 A
Conventional Free Air thermal Current - Solid Links 250 A
Product Width 50 mm
Product Length 116 mm
Product Height 406 mm
Sell Pack Quantity 1 EA
Sell Pack Weight 1.5 kg
Sell Pack Width 130 mm
Sell Pack Length 440 mm
Sell Pack Height 51 mm
Product Weight 1.5 kg
EAN/UPC 9008567007983

Certifications & Compliance

  • REACH
  • CE
  • RoHS
  • UKCA

Technical Details

Short Description
NH fuse-switch disconnector MULTIVERT® Size 00 160A 1x3-Pole switching Clamp Strap / Screw top terminal clamp straps M8
Rated Current (Ampere)
160 A
Rated Voltage (VAC)
690 V
Mounting Type
Bus bar system 60 mm
Catalog No
1.003.307
Standards
REACH, CE, RoHS, UKCA
Model Number
1.003.307
Tariff Code
85362090
