Siemens 6XV1878-2AU10 SIMATIC NET IE FC TP Standard Cable GP Cat6A 1000m Industrial Network Cable

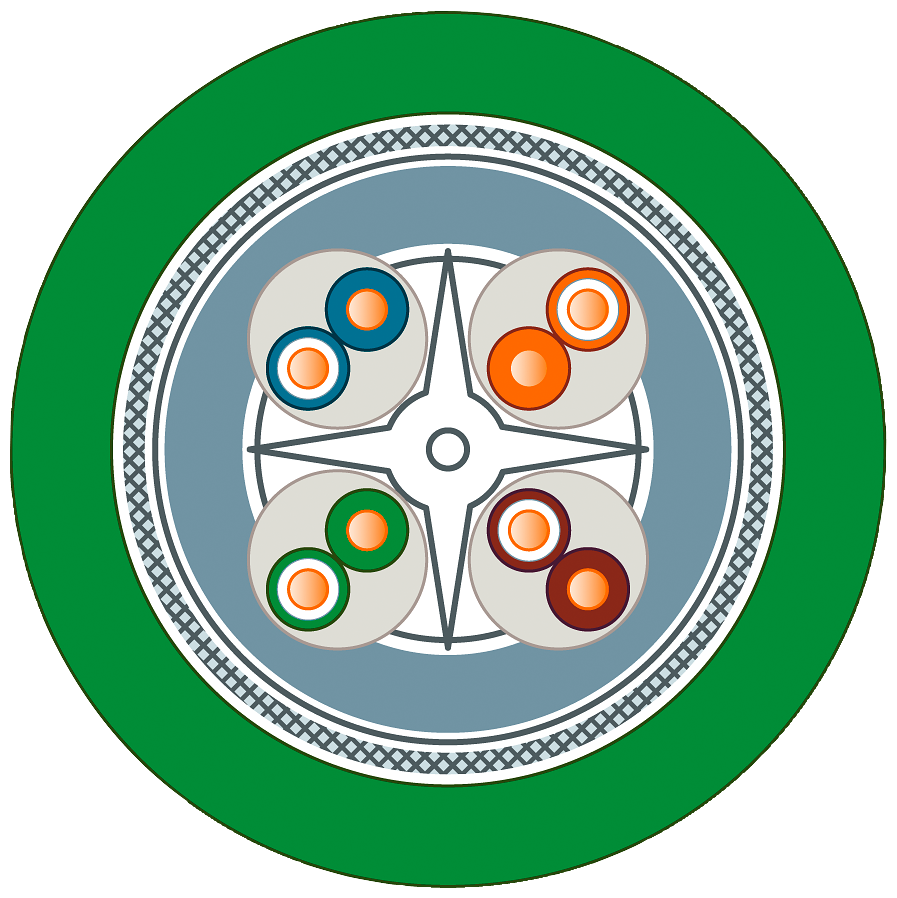

The Siemens 6XV1878-2AU10 is a 1000 m reel of IE FastConnect TP Standard GP cable, a Category 6A shielded twisted-pair installation cable with 4x2 AWG24 cores for fixed Industrial Ethernet wiring. It supports 100BaseTX and 1000BaseT runs to 100 m and 10GBase-T to 90 m, with PoE/PoE+/PoE++ capability and a -40 to +85 °C operating range.

Technical Specifications

Certifications & Standards

• EAC
• CE
• RoHS
• ANSI/TIA-EIA 568-B.2 Cat.5e
• IEC 61784-5-2-CP 2/2

Selection Notes

This GP-jacketed 1000 m reel is the general-purpose Cat6A option for fixed indoor Industrial Ethernet runs — the PVC outer sheath and FRNC inner sheath suit standard cable tray and duct installation rather than direct burial or high-flex use. Because it is FastConnect-terminated (field-installable RJ45 connectors), buy the reel and terminate on site rather than ordering pre-assembled patch cords; the 90 m 10GBase-T reach and PoE++ rating cover most cabinet-to-device runs, so route the last few meters with a shorter pre-terminated cord where flex life or connector count matters more than bulk length.
