Siemens 6XV1875-5CH50 SIMATIC NET N-Connect/R-SMA Antenna Cable 5m
Get Quote
- Description

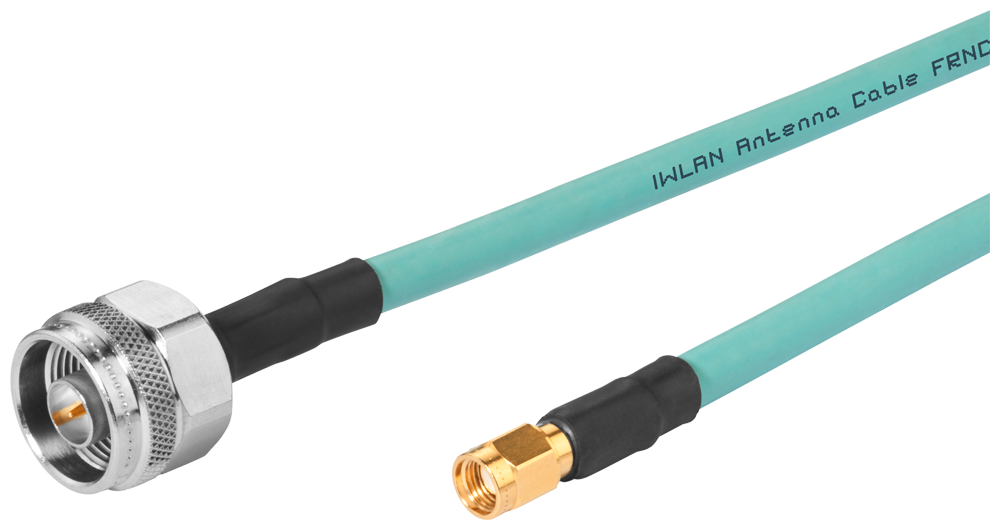

The Siemens 6XV1875-5CH50 is a SIMATIC NET antenna connection cable with N-Connect/R-SMA male/male plugs at 5 m length, rated for 0-6000 MHz transmission with 50 Ω impedance and IP68 protection when plugged in. It links an IWLAN access point or client to a remote antenna such as an RCoax leaky-feeder run.
Technical Specifications
| Order Number | 6XV1875-5CH50 |
| Brand | Siemens |
| Series | SIMATIC NET |
| EAN | 4018359197698 |
| Cable Designation | Antenna connection cable N-Connect/R-SMA male/male |
| Wire Length | 5 m |
| Connector Type | N-Connect/R-SMA male/male |
| Transmission Frequency | 0 ... 6000 MHz |
| Attenuation at 2.4 GHz, typical | 0.53 dB/m |
| Attenuation at 5.2 GHz, typical | 0.83 dB/m |
| Attenuation at 5.85 GHz, typical | 0.89 dB/m |
| Return Loss, min. | 23 dB |
| Impedance | 50 Ω |
| Max. Tensile Load | 80 N |
| Bending Radius, Single Bend, min. | 32 mm |
| Ambient Temperature, Operation | -40 ... +80 °C |
| Protection Class | IP68, when plugged in |
| Weight per Length | 75 kg/km |
| Net Weight | 0.42 kg |
| Country of Origin | SK |
Certifications & Standards
- EAC
- RoHS
Selection Notes
The 5 m length covers longer antenna runs than the shorter pre-assembled options in the same N-Connect/R-SMA family, useful when the access point sits in a cabinet away from the mounted antenna. At 0.53-0.89 dB/m attenuation across the 2.4-5.85 GHz WLAN bands, a longer cable from this same type reduces received signal margin, so keep the total run as short as the installation allows.
Applications
Connects a SIMATIC NET IWLAN access point or client module to an externally mounted antenna or RCoax leaky-feeder system in an industrial WLAN installation, indoors or outdoors given the IP68 rating when mated.
