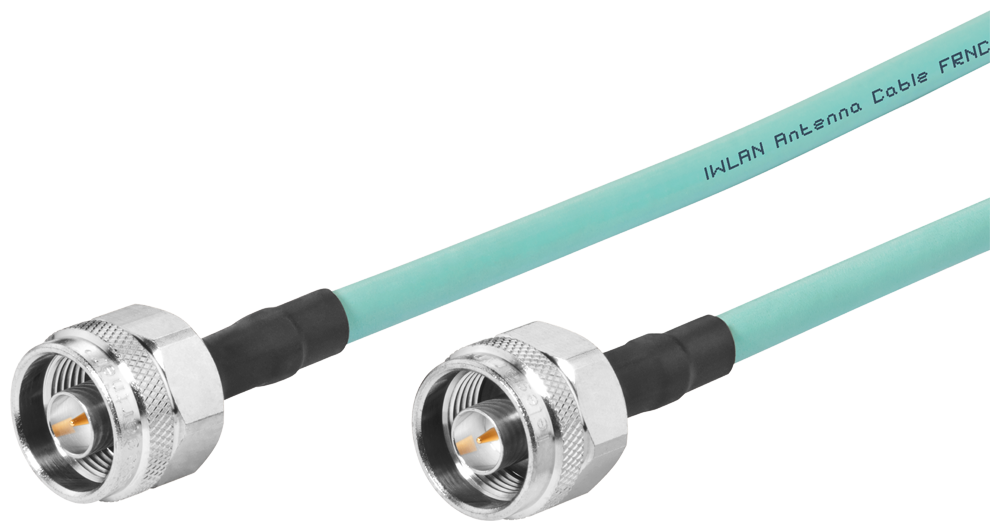

Siemens 6XV1875-5AN10 SIMATIC NET Antenna Cable N-Connect m/m 10m IWLAN Antenna Cable

The Siemens 6XV1875-5AN10 is a 10 m antenna connection cable with N-Connect male/male plugs, a flexible 50 Ω cable for connecting an antenna or RCoax cable to a SCALANCE M/W. It covers 0 to 6000 MHz, has a typical 0.53 dB/m attenuation at 2.4 GHz, and carries IP68 protection when mated.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

The 10 m length reaches an antenna or RCoax feed point mounted further from the SCALANCE M/W radio, such as on a mast or building roof, without an in-line splice. N-Connect male/male on both ends means the cable requires a female bulkhead or antenna connector at each end. Over the full 10 m, typical attenuation of 0.53 dB/m at 2.4 GHz adds up to roughly 5.3 dB of loss, so this run length should be weighed against antenna gain when planning the link budget. For a shorter run, choose the shorter length in the same cable range instead of coiling excess cable.

Applications

Used to connect SCALANCE M/W IWLAN or mobile radio devices to an externally mounted antenna or RCoax leaky feeder cable over longer runs such as mast or rooftop installations. The IP68-when-plugged rating and -40 to +80°C operating range suit outdoor and harsh-environment antenna runs on mobile equipment, cranes, and AGVs.
