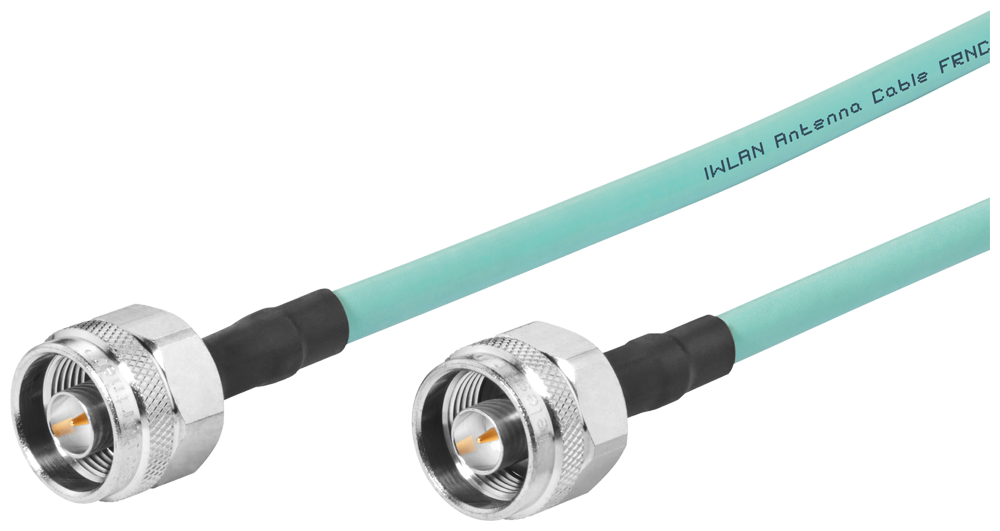

Siemens 6XV1875-5AH20 SIMATIC NET Antenna Cable N-Connect m/m 2m Antenna Cable

The Siemens SIMATIC NET antenna connection cable (6XV1875-5AH20) is a 2 m flexible N-Connect male/male cable for linking a SCALANCE M/W router or access point to an external antenna or RCoax cable. It covers 0-6000 MHz with 50 Ω impedance and typical attenuation of 0.53 dB/m at 2.4 GHz, reaching IP68 once mated.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

The 2 m length fits a router-to-antenna run inside or beside a single enclosure; longer separations call for an RCoax cable segment feeding into this connector rather than a longer N-Connect assembly, since attenuation rises with cable length across the 0-6000 MHz band. Both attenuation and return loss figures are quoted up to 5.85 GHz, covering 2.4 GHz and 5 GHz Wi-Fi as well as licensed mobile-radio bands, so the same cable serves IWLAN and cellular gateway installations without a band-specific variant. IP68 protection applies only once the connectors are mated, so the connection point still needs to sit inside a sealed or gasketed enclosure wall.

Applications

Connecting a SCALANCE industrial WLAN access point, router, or mobile-radio gateway to an external or roof-mounted antenna, or bridging to an RCoax leaky-feeder cable for tunnel and warehouse WLAN coverage.
