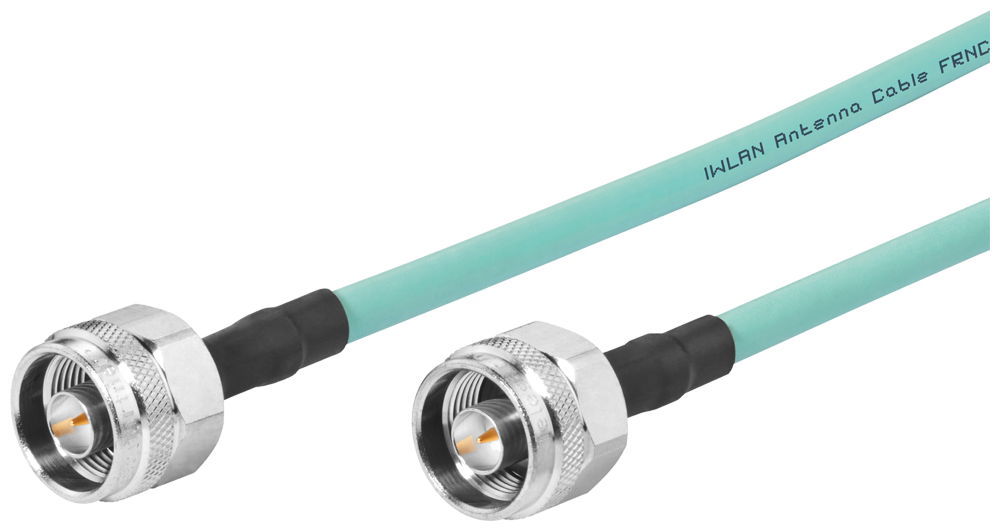

Siemens 6XV1875-5AH10 SIMATIC NET Antenna Cable N-Connect m/m 1m IWLAN Antenna Cable

The Siemens 6XV1875-5AH10 is a 1 m antenna connection cable with N-Connect male/male plugs, a flexible 50 Ω cable for connecting an antenna or RCoax cable to a SCALANCE M/W. It covers 0 to 6000 MHz, has a typical 0.53 dB/m attenuation at 2.4 GHz, and carries IP68 protection when mated.

Technical Specifications

Certifications & Standards

• EAC
• RoHS

Selection Notes

The 1 m length suits a direct connection between a SCALANCE M/W radio and a closely mounted antenna or RCoax feed point without excess cable slack. N-Connect male/male on both ends means the cable requires a female bulkhead or antenna connector at each end. Typical attenuation of 0.53 dB/m at 2.4 GHz and 0.83-0.89 dB/m at 5.2-5.85 GHz keeps signal loss low over this short run across both 2.4 GHz and 5 GHz WLAN bands. For a longer distance between radio and antenna, choose a longer length in the same cable range rather than adding an in-line splice, since each connector pair adds insertion loss.

Applications

Used to connect SCALANCE M/W IWLAN or mobile radio devices to an externally mounted antenna or RCoax leaky feeder cable in industrial wireless installations. The IP68-when-plugged rating and -40 to +80°C operating range suit outdoor and harsh-environment antenna runs on mobile equipment, cranes, and AGVs.
