Siemens 6XV1871-5BN30 SIMATIC NET IE FC RJ45-180 Cable 2x2 30 m PoE Industrial Network Cable

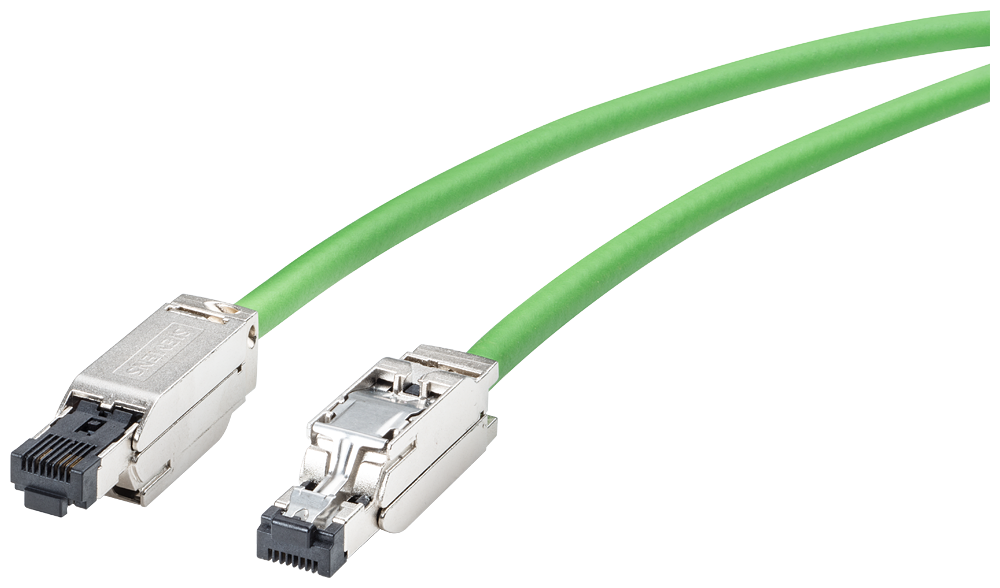

The Siemens 6XV1871-5BN30 is a 30 m SIMATIC NET IE FC RJ45-180 connecting cable, pre-assembled with two IE FC RJ45 180-degree plugs for linking Industrial Ethernet stations over a 10/100 Mbit/s RJ45 interface. Built to SF/UTP Cat5e Class D specification with 100 Ω impedance, it supports PoE and PoE+ power delivery and withstands 3 million bending cycles in drag-chain applications.

Technical Specifications

Certifications & Standards

• EAC
• CE
• RoHS

Selection Notes

The 30 m length suits cabinet-to-cabinet or cabinet-to-field-device runs where the pre-assembled 180-degree IE FC RJ45 plugs remove on-site termination. The SF/UTP shield, 100 Ω impedance, and Cat5e Class D rating meet the requirements of 10/100 Mbit/s Industrial Ethernet and PROFINET, while PoE+ support lets the same run power an attached switch, camera, or access point. The 3-million-cycle drag-chain rating at a 100 mm bend radius covers moving cable carriers as well as fixed installation. For distances beyond 30 m, the longer preassembled variant avoids a field splice; for shorter runs, a shorter preassembled length cuts slack and cost.

Applications

RJ45 connections between Industrial Ethernet switches, PLCs, and PoE-powered devices such as IP cameras or WLAN access points, including on drag chains and other moving cable carriers within the rated bend radius and cycle count.
