Siemens 6XV1870-3QN20 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6a 20m Industrial Network Cable

% $-84.16

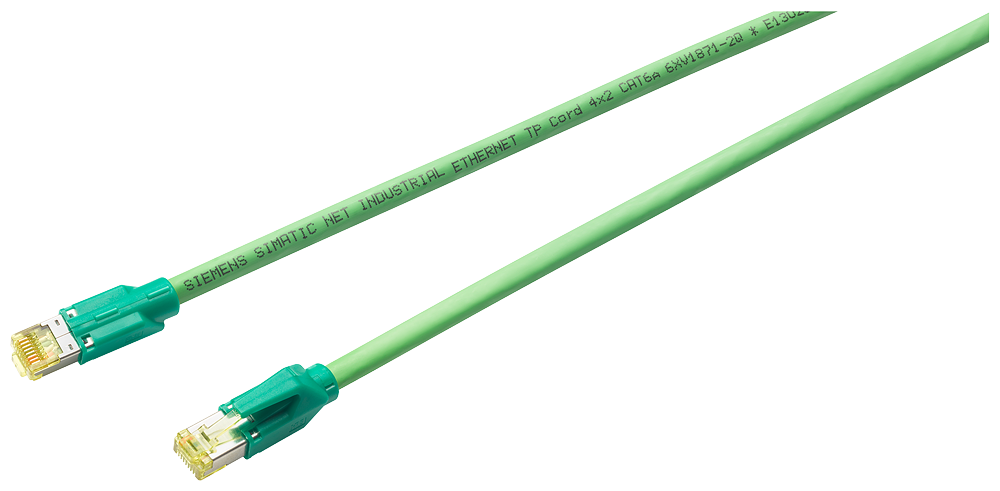

Siemens 6XV1870-3QN20 IE TP Cord RJ45/RJ45 Cat6a Ethernet patch cable - 20m
Siemens 6XV1870-3QN20 IE TP Cord RJ45/RJ45 Cat6a Ethernet patch cable - 20m

Siemens 6XV1870-3QN20 SIMATIC NET IE TP Cord RJ45/RJ45 Cat6a 20m Industrial Network Cable

Brand: Siemens
Reference No: 6XV1870-3QN20
Catalog No: 6XV1870-3QN20
Series: SIMATIC NET
Tariff Code (HS): 85444210
Rated Voltage: 80 V
Communication: Ethernet, RJ45/RJ45, Cat6A S/FTP, 10/100/1000/10GBASE-T, PoE++
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$84.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens 6XV1870-3QN20 is a pre-assembled Industrial Ethernet TP cord with two latched RJ45 connectors, built to Cat6A S/FTP shielding on a 20 m fixed length. It supports 10/100/1000/10000 Mbit/s links plus PoE, PoE+ and PoE++ power delivery, reaching from a cabinet-mounted switch out to field-level devices without an intermediate patch panel.

Technical Specifications

SKU / Order Number 6XV1870-3QN20
Brand Siemens
Series SIMATIC NET
EAN 4019169855266
Product Type Designation IE TP Cord RJ45/RJ45, 4x2
Description Patch cable, preassembled with two RJ45 connectors (10/100/1000/10000 MB)
Cable Designation S/FTP, LI 02YSCH 4x2x0.15 PIMF GN FRNC
Wire Length 20 m
Connector Type RJ45, latched
Number of Electrical Connections 2
Number of Electrical Cores 8
Cabling Standard Cat6A (ISO/IEC 11801-1, IEC 61035)
Shield Design S/FTP - overlapped aluminum-clad foil, braided tinned copper shield
Attenuation @ 10 / 100 MHz (Max.) 0.086 dB/m / 0.28 dB/m
Attenuation @ 300 / 600 MHz (Max.) 0.501 dB/m / 0.735 dB/m
Impedance 100 ohm
Coupling Loss @ 30-100 MHz (Min.) 70 dB
Transfer Impedance per Length @ 10 MHz 10 mOhm/m
Loop Resistance per Length (Max.) 290 mOhm/m
Operating Voltage (RMS) 80 V
NVP Value 80 %
Outer Diameter, Cable Sheath 6.2 mm
Weight per Length 50 kg/km
Bending Radius, Single Bend (Min.) 31 mm
Bending Radius, Multiple Bend (Min.) 43.5 mm
Operating / Storage / Transport Temperature -25 to +80 C
Installation Temperature -25 to +80 C
Fire Behavior Flame-resistant acc. to IEC 60332-1-2, EN 60332-3-24
Burning Behaviour Class (EN 13501-6) Eca
Oil Resistance Oil-resistant acc. to IEC 60811-2-1 (4h/70C)
UV Resistance Not resistant
Protection Class IP20
Halogen-Free Yes, acc. to EN 60754-2
PoE / PoE+ / PoE++ Capability Yes / Yes / Yes
Test Voltage, Core-to-Core / Core-Shield 500 V / 1500 V
Net Weight 0.498 kg

Certifications & Standards

  • EAC
  • UL
  • RoHS

Selection Notes

At 20 m this cord reaches from a cabinet-mounted switch to a field device on the same line without a patch panel splice, while staying inside typical Cat6A structured-cabling permanent-link limits. Shield, connector type and PoE++ rating match the rest of the family; choose the 30 m or 35 m cord for longer runs, or a shorter one from this series for panel-level jumpers.

Technical Details

Short Description
Siemens IE TP cord, RJ45/RJ45, Cat6a S/FTP, 20 m, PoE++.
Rated Voltage (VAC)
80 V
Protection Type
IP20
Catalog No
6XV1870-3QN20
Standards
EAC approval, UL approval, RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1870-3QN20
Tariff Code
85444210
