Siemens 6XV1843-5EH10-0CA0 SIMATIC NET MM FO Cord SC/LC 50/125 1m Industrial Network Cable

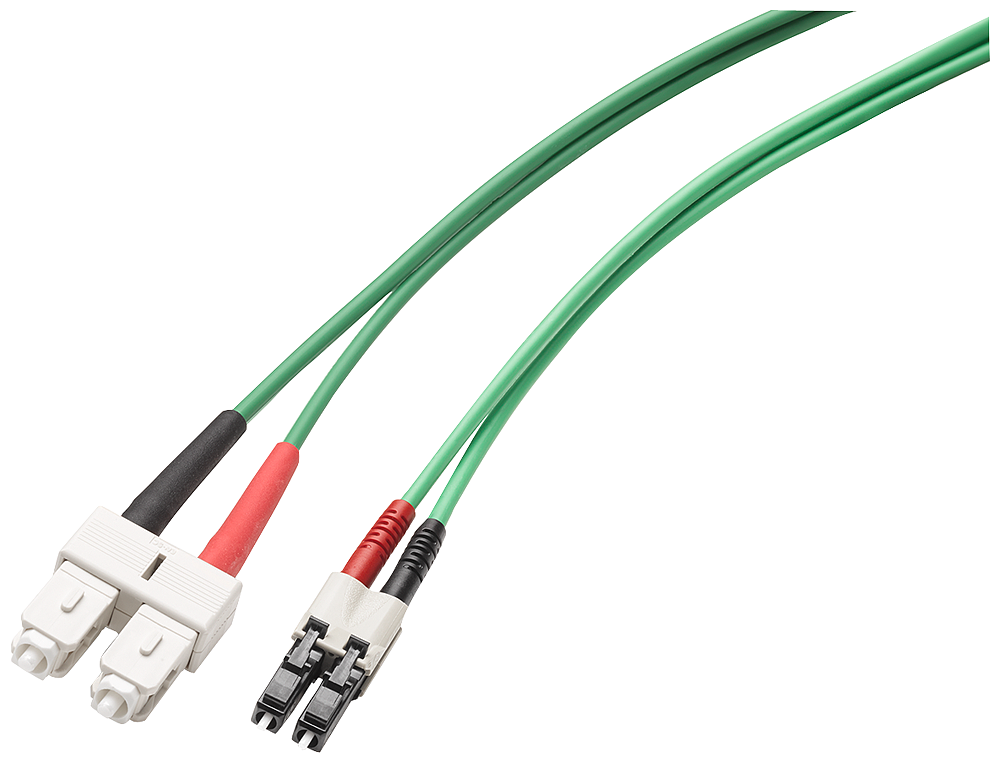

The Siemens 6XV1843-5EH10-0CA0 is a 1 m multimode fiber-optic patch cord preassembled with one SC duplex connector and one LC duplex connector, built on 50/125 µm OM4 glass fiber. It is rated for control-cabinet use with IP20 protection, a flame-resistant halogen-free LSZH sheath, and a minimum bending radius of 42 mm for tight cabinet routing.

Technical Specifications

Certifications & Standards

• RoHS

Selection Notes

The 1 m length and SC-to-LC connector combination fix this cord for patching between an SC-terminated port and an LC-terminated port — pick a different assembly from the same MM FO Cord family for same-connector (SC-SC or LC-LC) links or a different length. Its 50/125 µm OM4 fiber and 500/1300 GHz·m bandwidth support Industrial Ethernet segments that need multimode rather than singlemode reach, and the halogen-free, flame-resistant LSZH sheath meets control-cabinet fire-behavior requirements.

Applications

Patches SIMATIC NET Industrial Ethernet or PROFINET fiber links inside a control cabinet where one end terminates on an SC port and the other on an LC port — typical when connecting an industrial switch to a media converter or a differently-connectorized network device.
