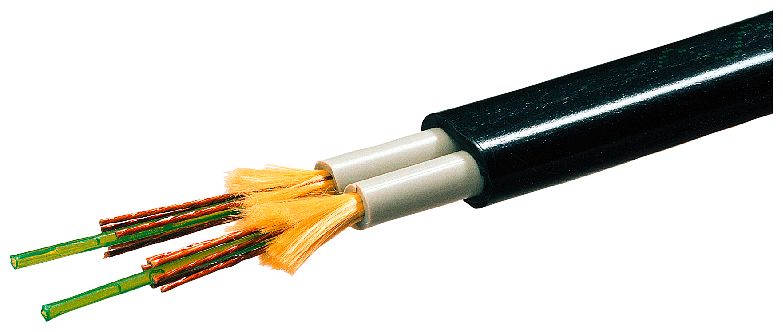

Siemens 6XV1820-5BT13 SIMATIC NET FO Standard Cable 62.5/125 130m 4xBFOC Industrial Network Cable

% $-1,046.37
Siemens 6XV1820-5BT13 SIMATIC NET FO Standard Cable 62.5/125 - 130m 4xBFOC
Siemens 6XV1820-5BT13 SIMATIC NET FO Standard Cable 62.5/125 - 130m 4xBFOC

Siemens 6XV1820-5BT13 SIMATIC NET FO Standard Cable 62.5/125 130m 4xBFOC Industrial Network Cable

Brand: Siemens
Reference No: 6XV1820-5BT13
Catalog No: 6XV1820-5BT13
Series: SIMATIC NET
Tariff Code (HS): 85447000
Communication: Industrial Ethernet / PROFIBUS (fiber optic)
Stock: 0
Delivery time: 10-15 business day(s)
Shipping Origin: Türkiye EXW
$1,046.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens SIMATIC NET 6XV1820-5BT13 is a 130 m fiber optic standard cable, 62.5/125 µm multimode graded-index (OM1), pre-assembled with four BFOC connectors for indoor and outdoor Industrial Ethernet or PROFIBUS runs. It withstands -40 to +85 degrees C, offers a minimum 80 mm bend radius, and is rated flame-resistant per IEC 60332-1-2/3-22.

Technical Specifications

SKU 6XV1820-5BT13
Brand Siemens
Series SIMATIC NET
Product Type Designation Fiber Optic Standard Cable
Cable Designation AT-V(ZN)YY 2X1 G 62.5/125 OM1
Wire Length 130 m
Connector Assembly 4x BFOC
Fiber Type Multimode graded-index 62.5/125 µm, OM1
Number of FO Cores 2
Fibers per Core 1
Attenuation at 850nm (max) 3 dB/km
Attenuation at 1300nm (max) 0.8 dB/km
Bandwidth-Length Product at 850nm 300 GHz·m
Bandwidth-Length Product at 1300nm 800 GHz·m
Max Length, 100BaseFX (Industrial Ethernet) 4000 m
Max Length, 1000BaseSX 500 m
Max Length, 1000BaseLX 1000 m
Max Length, PROFIBUS 3000 m
Outer Diameter, FO Core Sheath 3.5 mm
Cable Sheath (Width x Thickness) 9.8 x 6.3 mm
Sheath Material PVC, black
Strain Relief Material Aramid fibers and glass roving
Bending Radius (Single/Multiple Bend, min) 80 mm
Tensile Load (Installation/Operation, max) 1500 N
Continuous Shear Force 150 N/cm
Weight per Length 70 kg/km
Ambient Temperature (Operation/Storage/Transport) -40 to +85C
Ambient Temperature (Installation) -5 to +50C
Fire Behavior Flame-resistant per IEC 60332-1-2 and IEC 60332-3-22 (Cat. A)
Protection Class IP20
Net Weight 9.62 kg
Country of Origin CN
EAN 4019169404037

Certifications & Standards

  • RoHS

Selection Notes

At 130 m, this cable covers point-to-point Industrial Ethernet or PROFIBUS runs well inside the 4000 m maximum length for 100BaseFX or the 3000 m PROFIBUS limit, leaving attenuation budget from its 3 dB/km (850 nm) rating unused for future rerouting. Choose a shorter length in the same AT-V(ZN)YY 62.5/125 OM1 series when the run is a short in-cabinet link, or a longer one when routing between distant buildings.

Technical Details

Short Description
Siemens SIMATIC NET 6XV1820-5BT13 fiber optic standard cable, 62.5/125 OM1, 130m, 4xBFOC, IP20.
Protection Type
IP20
Catalog No
6XV1820-5BT13
Standards
RoHS conformity
Delivery Date (Days)
10-15 days
Model Number
6XV1820-5BT13
Tariff Code
85447000
