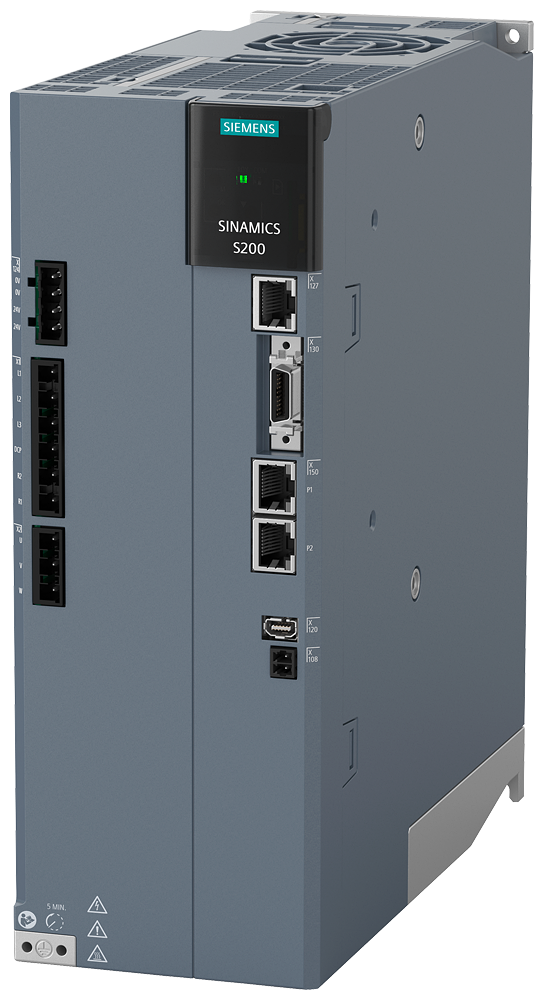

Siemens 6SL5510-1BE15-0AF0 SINAMICS S200 PROFINET 3AC 400V 5kW Servo Drive

The Siemens 6SL5510-1BE15-0AF0 is a SINAMICS S200 servo drive with an integrated PROFINET interface, rated 5 kW at 3 AC 380-480 V input with 13.0 A rated input current, delivering 12.6 A rated and up to 38.8 A maximum output current with IP20/UL open protection in frame size FSD. It switches at an 8 kHz pulse frequency, outputs 0-550 Hz, and weighs 4.00 kg.

Technical Specifications

Selection Notes

The 12.6 A rated / 38.8 A peak output current gives roughly 3x short-term overload, sized for servo axes with high acceleration demand rather than constant torque running near the rated point. PROFINET integration lets it join a SINAMICS S200 axis group on the same real-time network as an S7-1500 or S7-1200 motion controller without a separate fieldbus gateway. IP20/UL open enclosure protection means it is built for a closed cabinet, not direct field mounting, and frame size FSD (95x260x230 mm) sets the minimum enclosure depth to plan for.

Applications

Used for single-axis servo positioning in packaging, handling, and pick-and-place machines controlled over PROFINET from an S7-1500 or S7-1200 motion controller. The 5 kW rating and 38.8 A peak output cover axes such as indexing tables, cross-cutters, and pallet shuttles that need short bursts of high torque between longer idle periods, and the 20.4-28.8 V control supply lets the drive electronics stay powered on a standard 24 V control-cabinet rail even when the main 3 AC power is switched off for maintenance.
