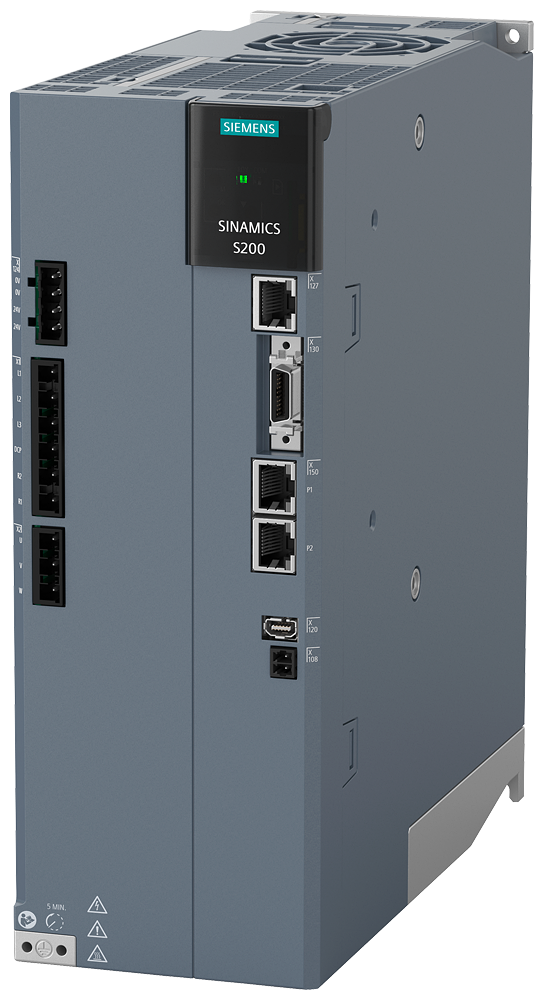

Siemens 6SL5510-1BE13-5AF0 SINAMICS S200 PN 3.5kW 400V PROFINET Servo Drive

The Siemens 6SL5510-1BE13-5AF0 is a SINAMICS S200 PN servo drive rated 3.5 kW at 3AC 380-480V with an integrated PROFINET interface, delivering 11.0 A rated output current and up to 38.1 A maximum output current at 8 kHz pulse frequency, in an IP20 / UL open enclosure measuring 95 x 260 x 230 mm.

Technical Specifications

Selection Notes

The PN suffix means PROFINET is built into this drive, so it joins a PROFINET line directly off an S7-1500 or S7-1200 controller without an added communication module - pick a different fieldbus variant only if the line runs on EtherCAT or another protocol instead. At 3.5 kW / 11.0 A rated with a 38.1 A overload ceiling, it covers single-axis motion tasks with meaningful acceleration headroom rather than continuous full-load running. The IP20 / UL open rating means it needs mounting inside a control cabinet, not direct machine-frame exposure.

Applications

Single-axis servo motion in PROFINET-networked machines - packaging, pick-and-place, and indexing axes - where the 3.5 kW rating and integrated PROFINET interface avoid a separate communication card.
