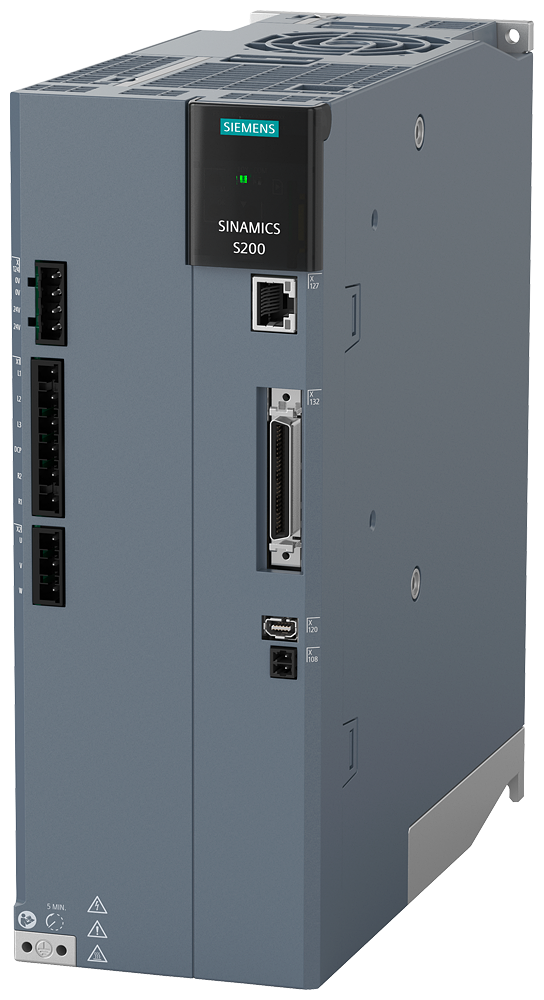

Siemens 6SL5510-1BE13-5AA0 SINAMICS S200 PTI 3.5kW 400V 11A Servo Drive

The Siemens 6SL5510-1BE13-5AA0 is a SINAMICS S200 servo drive with pulse train input, rated 3.5 kW at 11.0 A continuous output current (38.1 A max) from a 380-480 V 3 AC, 45-66 Hz supply. It switches at 8 kHz, covers 0-550 Hz output frequency, and carries IP20 / UL open-type protection in the larger FSD frame size.

Technical Specifications

Selection Notes

At 3.5 kW / 11.0 A rated (38.1 A peak), this FSD-frame variant delivers more continuous torque than the smaller frame sizes in the S200 PTI range, at the cost of a larger footprint. The pulse-train interface makes it a direct servo upgrade for stepper-based designs already generating step/direction signals, without adding a fieldbus network to the machine.

Applications

Suited to servo axes with moderate torque demands - conveyor drives, indexing axes, packaging machinery - where a pulse-train interface from an existing motion controller or stepper indexer needs to be upgraded to closed-loop servo control.
