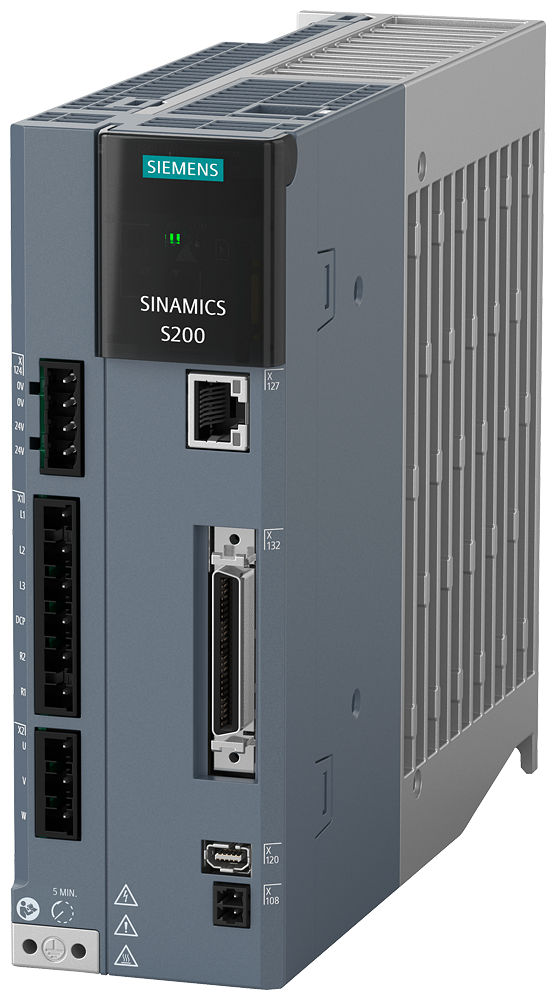

Siemens 6SL5510-1BE11-0AA0 SINAMICS S200 PTI 1kW 400V 3A Servo Drive

The Siemens 6SL5510-1BE11-0AA0 is a SINAMICS S200 servo drive with pulse train input, rated 1 kW at 3.0 A continuous output current (11.5 A max) from a 380-480 V 3 AC, 45-66 Hz supply. It switches at 8 kHz, covers 0-550 Hz output frequency, and carries IP20 / UL open-type protection in a compact FSB frame size.

Technical Specifications

Selection Notes

The PTI (pulse train input) control variant takes step/direction pulse commands rather than an analog or fieldbus reference, making it a direct upgrade path when a stepper-based motion design needs closed-loop servo positioning. At 1 kW / 3.0 A rated output (11.5 A peak) in the compact FSB frame, this is a low-power entry point in the S200 PTI range - pick a higher-current variant in a larger frame size when driving loads above roughly 1 kW continuous.

Applications

Suited to compact servo-positioning tasks - pick-and-place, indexing tables, small conveyor axes - where a pulse-train interface from an existing stepper controller or simple motion controller drives the closed loop directly, without adding a fieldbus network.
