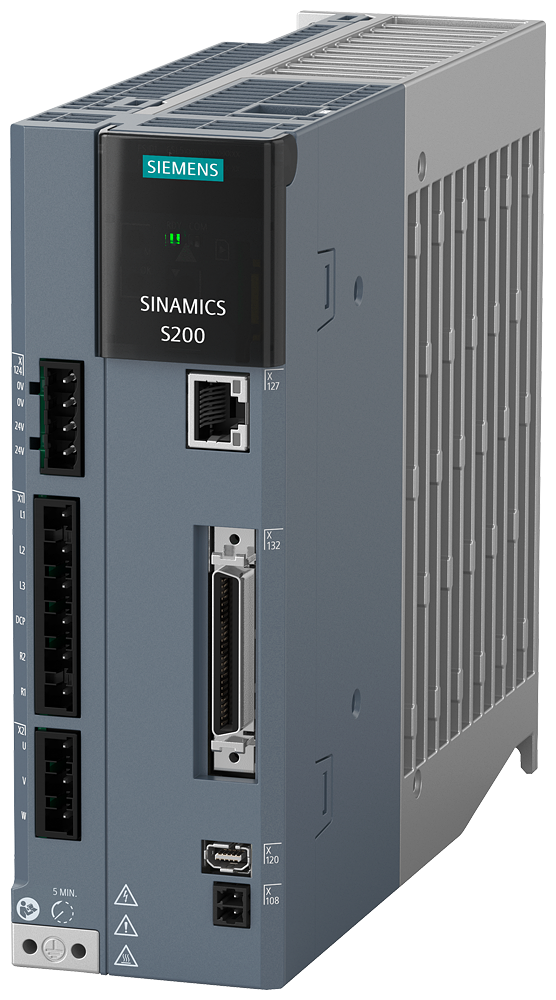

Siemens 6SL5510-1BE10-8AA0 SINAMICS S200 PTI 380-480V 0.75kW Servo Drive

The Siemens SINAMICS S200 (6SL5510-1BE10-8AA0) is a pulse-train-input servo drive rated for 0.75 kW output at 380-480 V 3AC input, delivering 2.5 A rated and 9.3 A maximum output current at up to 550 Hz output frequency. Built in frame size FSB (60x180x200 mm, WxHxD) with IP20 / UL open-type protection, it draws a 20.4-28.8 V DC control supply and weighs 1.91 kg.

Technical Specifications

Selection Notes

The 0.75 kW / 2.5 A rated output places this FSB-frame S200 drive at the low end of the family's power range, sized for single-axis loads rather than the larger frame sizes used for higher-power motors. The pulse-train input (PTI) variant accepts step/direction signals directly from a motion controller or PLC high-speed outputs, the right choice when the machine control has no real-time fieldbus interface for motion. The 9.3 A maximum current against a 2.5 A rated value gives roughly 3.7x short-term overload headroom for acceleration ramps, and the 8 kHz pulse frequency sets the resolution ceiling for the incoming step signal. IP20 / UL open-type construction means it belongs inside a closed control cabinet, not on an open machine frame.

Applications

Single-axis positioning on packaging, indexing, and pick-and-place machines where a PLC or dedicated motion controller issues step/direction pulses rather than running a fieldbus motion protocol. The compact FSB frame footprint (60x180x200 mm) suits panel-mount control cabinets with limited depth.
