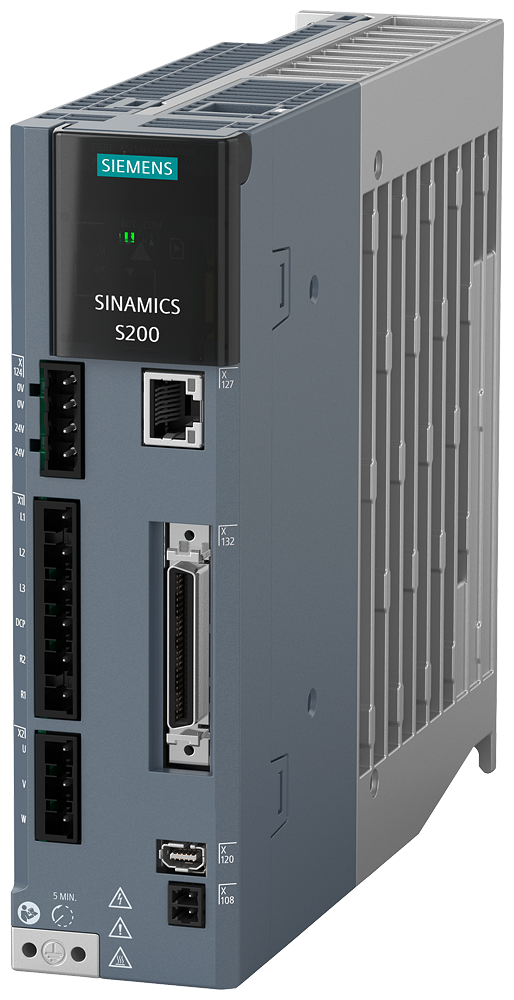

Siemens 6SL5510-1BE10-4AA0 SINAMICS S200 PTI 380-480V 0.4kW Servo Drive

The Siemens SINAMICS S200 6SL5510-1BE10-4AA0 (PTI, pulse train input) is a 380-480 V three-phase servo drive rated for a 0.40 kW motor, delivering 1.3 A rated output current and 6.0 A maximum output current across a 0-550 Hz range in a Frame Size A, IP20 housing rated for 0-55 °C operation.

Technical Specifications

Selection Notes

This FSA frame covers the low end of the S200 PTI range at 0.40 kW / 1.3 A rated current; pick a larger frame size if the application needs more than the 6.0 A maximum output current can deliver on acceleration. The PTI designation means it takes a pulse train command directly rather than needing a fieldbus master, which is the reason to choose it over a fieldbus-addressed S200 variant on machines with a simple point-to-point motion controller.

Applications

Fits small single-axis pulse-train-controlled positioning tasks, including pick-and-place, small indexing tables, and labeling axes, driven from a motion controller or PLC pulse-train output rather than a fieldbus network.
