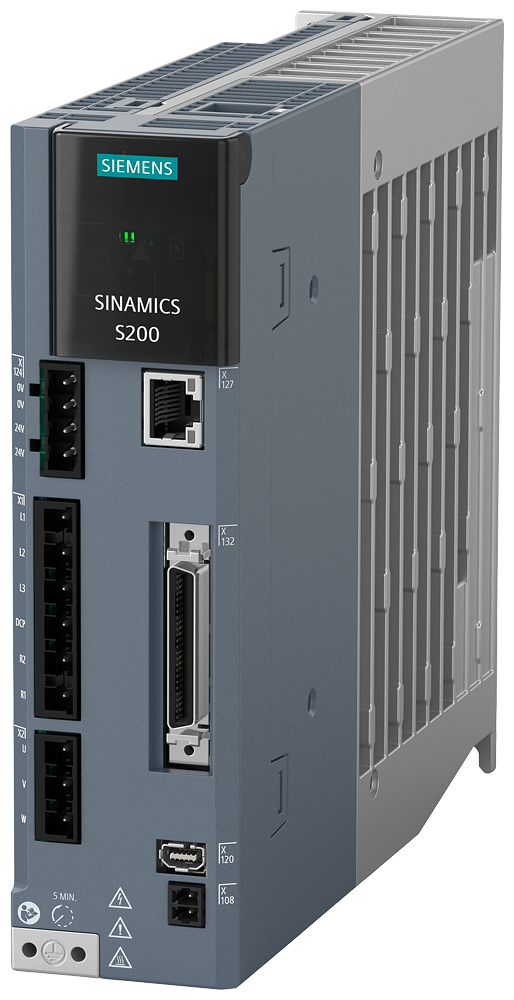

Siemens 6SL5510-1BE10-2AA0 SINAMICS S200 PTI 380-480V 3AC 0.2kW Servo Drive

The Siemens 6SL5510-1BE10-2AA0 is a SINAMICS S200 PTI servo drive for a 0.2 kW motor, taking 3AC 380-480 V input at 45-66 Hz with pulse-train step/direction control. It delivers up to 5.1 A max output current at 0-550 Hz output frequency, in an IP20 / UL open frame FSA housing (50 x 180 x 200 mm) weighing 1.52 kg.

Technical Specifications

Selection Notes

The pulse-train input (PTI) variant takes step/direction commands directly, useful when the upstream controller has no fieldbus motion interface. At 0.20 kW rated power and 5.1 A max output current, this is the smallest 380-480 V frame (FSA) in the S200 PTI range - move to a larger frame if the connected motor draws more than 5.1 A. Unlike the dual-voltage 200-240 V models, this variant is rated for 3AC 380-480 V only, matching a standard 400 V industrial supply without a separate transformer.

Applications

Fits small single-axis positioning tasks on a 400 V 3-phase supply driven by step/direction commands - pick-and-place heads, small indexing tables, and stepper-to-servo retrofits where the plant runs 380-480 V.
