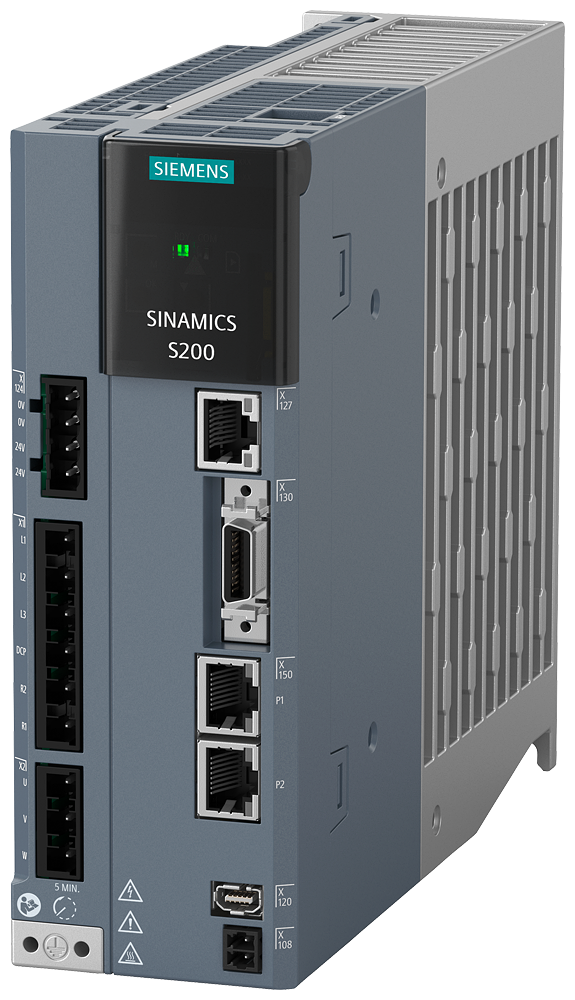

Siemens 6SL5510-1BB11-0AF0 SINAMICS S200 PN 1/3AC 200V 1kW Servo Drive

The Siemens SINAMICS S200 (6SL5510-1BB11-0AF0) is a PROFINET servo drive for 1/3 AC 200-240 V supply, rated 4.4 A output current and 1 kW output power, with a 16.8 A max output current stage covering 0-550 Hz. It ships in an IP20 FSC enclosure (60 x 170 x 195 mm) sized for compact single-axis positioning cells.

Technical Specifications

Selection Notes

The 1/3 AC 200-240 V input lets this frame run from single-phase supply in lighter cells or from 3-phase for extra headroom, though the continuous rating is set by whichever supply is used (8.0 A single-phase vs. 4.0 A three-phase draw). At 1 kW rated / 16.8 A peak output, this FSC frame suits light servo axes; an axis needing more continuous torque or overload margin calls for the next frame size up in the S200 line. PROFINET handles cyclic motion data directly, so no separate pulse or analog interface wiring is needed to the controller.

Applications

Compact single-axis positioning in packaging and small material-handling equipment where panel space is limited (60 x 170 x 195 mm, IP20). The 0-550 Hz output range and PROFINET interface support synchronized multi-axis motion coordinated from a single machine controller.
