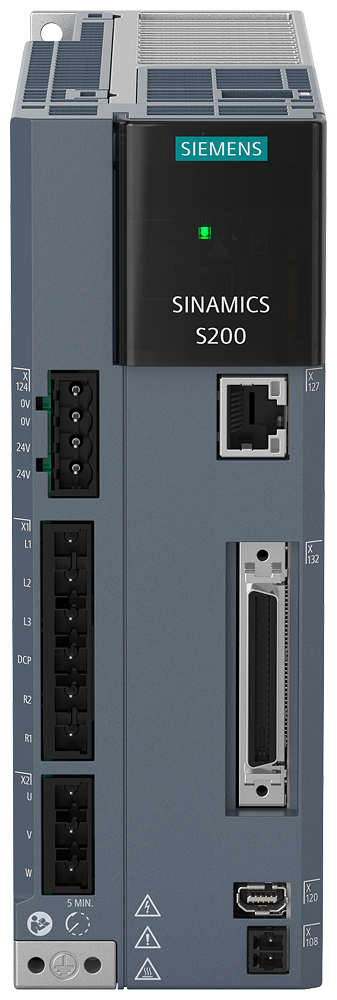

Siemens 6SL5510-1BB11-0AA0 SINAMICS S200 PTI 1kW 200-240V Servo Drive

The Siemens 6SL5510-1BB11-0AA0 is a SINAMICS S200 PTI servo drive for a 1 kW motor, taking 1/3 AC 200-240 V input at 45-66 Hz and delivering up to 16.8 A output current at 0-550 Hz. Housed in FSC frame (60 x 170 x 195 mm) at 1.74 kg, it uses pulse-train input for direct step/direction positioning control.

Technical Specifications

Selection Notes

At 1.00 kW rated power in the same FSC frame and current ratings (4.4 A rated / 16.8 A max output) as the 0.75 kW variant, this SKU is the higher power-rated option for the same physical footprint - useful when panel space is fixed but the driven load needs the extra rated power headroom. The 200-240 V single/three-phase input (8.0 A single-phase vs 4.0 A three-phase) sizing carries over from the FSC frame; check branch protection against the single-phase figure. Keep the pulse-train (PTI) control scheme in mind: this variant expects step/direction commands, not a fieldbus motion interface.

Applications

Suits mid-power single-axis positioning on 200-240 V machines - feed axes, indexing tables, and stepper-to-servo retrofits needing 1 kW from a SINAMICS S200 PTI drive in the same FSC footprint.
