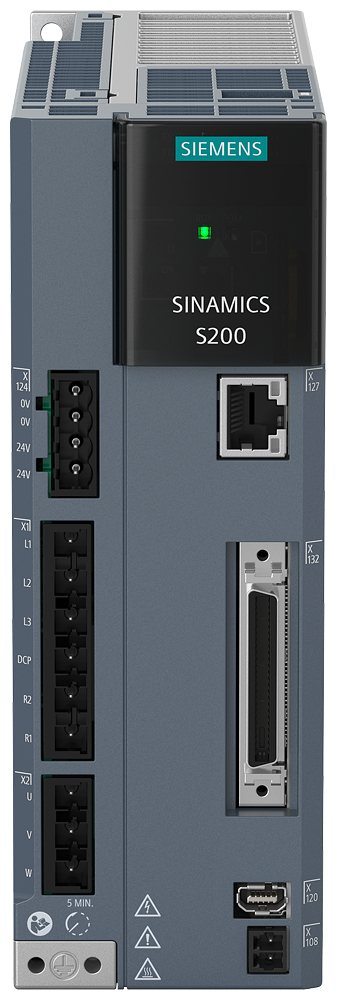

Siemens 6SL5510-1BB10-8AA0 SINAMICS S200 PTI 0.75kW 200-240V Servo Drive

The Siemens 6SL5510-1BB10-8AA0 is a SINAMICS S200 PTI servo drive for a 0.75 kW motor, taking 1/3 AC 200-240 V input at 45-66 Hz and delivering up to 16.8 A output current at 0-550 Hz. Housed in FSC frame (60 x 170 x 195 mm) at 1.74 kg, it uses pulse-train input for direct step/direction positioning control.

Technical Specifications

Selection Notes

At 0.75 kW rated power and 16.8 A max output current, this FSC frame steps up from the 0.2 kW FSA unit for heavier single-axis loads. The 200-240 V single/three-phase input (8.0 A single-phase vs 4.0 A three-phase) draws roughly four times the FSA frame's single-phase current - check branch protection sizing before swapping frames. Keep the pulse-train (PTI) control scheme in mind: this variant expects step/direction commands, not a fieldbus motion interface.

Applications

Suits mid-power single-axis positioning on 200-240 V machines - larger indexing tables, conveyor infeed axes, and stepper-to-servo retrofits needing 0.75 kW from a SINAMICS S200 PTI drive.
