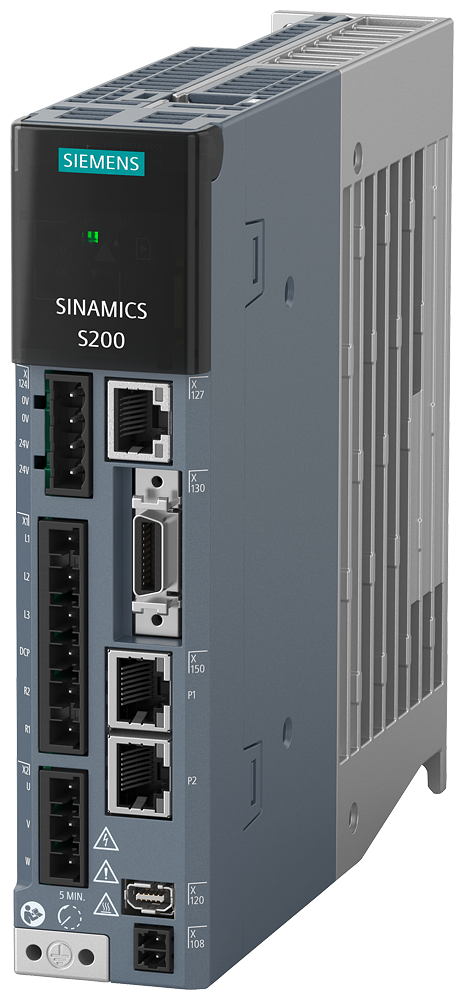

Siemens 6SL5510-1BB10-4AF0 SINAMICS S200 PN 0.4kW 200-240V Servo Drive

The Siemens SINAMICS S200 servo drive (6SL5510-1BB10-4AF0) is a PROFINET-based drive rated for 200-240 V 1/3 AC input and a 0.4 kW motor, delivering 2.4 A rated output current and up to 9.2 A peak with an output frequency range of 0-550 Hz. Housed in an IP20, 40 x 170 x 170 mm FSB frame, it targets compact single-axis positioning tasks on PROFINET networks.

Technical Specifications

Selection Notes

The 0.4 kW rated power and 2.4 A output current position this variant for smaller single-axis servo motors; higher-power SINAMICS S200 variants in the same family step up rated current for larger motors. The 8.5 A inrush current and 45 °C maximum temperature without derating (55 °C absolute limit) set the enclosure cooling requirement in a control cabinet. PROFINET as the onboard fieldbus interface aligns this drive with TIA Portal-based motion control architectures rather than standalone analog control.

Applications

Suited for compact single-axis positioning in packaging, pick-and-place, or material handling cells running on PROFINET, where cabinet space (40 x 170 x 170 mm FSB frame) and an IP20 enclosure require a controlled panel environment.
