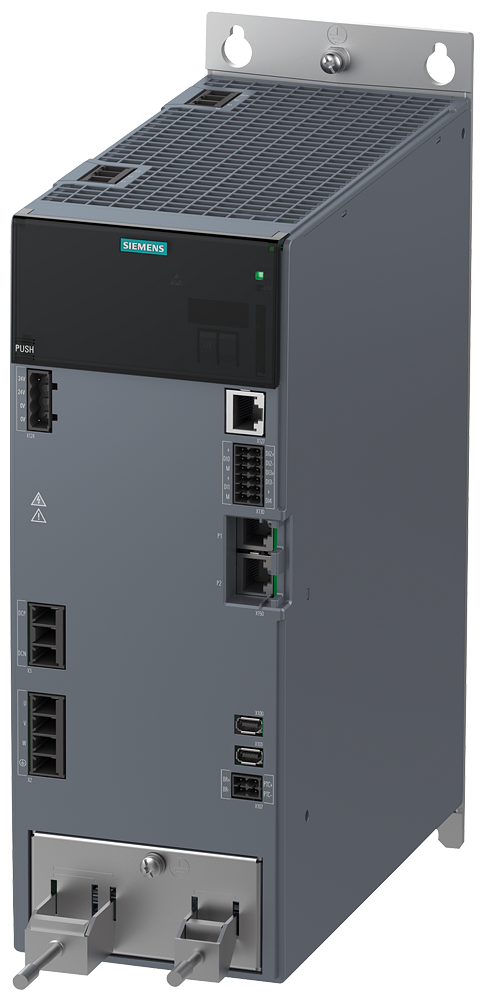

Siemens 6SL5310-1BE17-0DF0 SINAMICS S210 3AC 200-480V 7.0kW Servo Drive

The Siemens 6SL5310-1BE17-0DF0 is a SINAMICS S210 servo drive for a 7.0 kW motor, taking 3AC 200-480 V input at 45-66 Hz and rated for 17.9 A input current. It delivers up to 55.0 A max output current at 0-550 Hz output frequency, in an IP20 frame C housing (105 x 322 x 223 mm) weighing 4.8 kg.

Technical Specifications

Selection Notes

At 7.0 kW rated power (400 V) and 55.0 A max output current, this is the top of the 3AC S210 range covered here, sharing the same frame C housing as the 3.5 kW variant but rated for roughly double the current - check that upstream cabling and protection are sized for 17.9 A rated input rather than reusing the smaller unit's wiring. Rated power drops to 4.20 kW at 240 V input, so a 230 V 3-phase supply significantly limits the usable motor power at this frame size compared to a 400 V feed.

Applications

Suited to higher-power 3-phase single-axis loads - main spindle or large feed axes, winder drives, and heavy pick-and-place systems in the 4-7 kW range - on 230 V or 400 V 3-phase supply.
