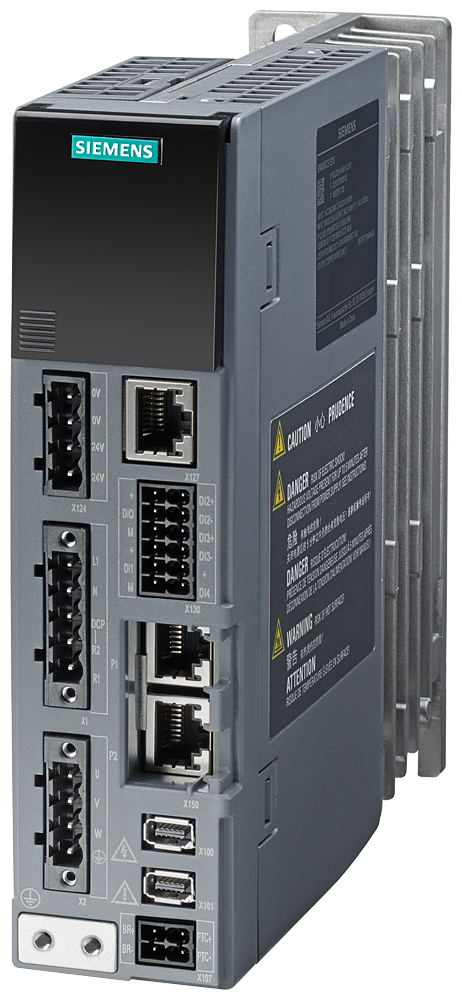

Siemens 6SL5310-1BB10-2CF0 SINAMICS S210 1AC 200-240V 0.2kW Servo Drive

The Siemens 6SL5310-1BB10-2CF0 is a SINAMICS S210 servo drive for a 0.2 kW motor, taking 1AC 200-240 V input at 45-66 Hz and rated for 2.7 A input current. It delivers up to 4.8 A max output current at 0-550 Hz output frequency, in an IP20 frame A housing (45 x 170 x 170 mm) weighing 1.15 kg.

Technical Specifications

Selection Notes

At 0.20 kW and 4.8 A max output current, this is the smallest frame (A) in the single-phase S210 line - move to a larger frame if the connected servo motor draws more current than that. The 2.7 A rated input current at 200-240 V 1AC lets it run from a standard single-phase supply, useful for small-axis retrofits where only single-phase power is available. The 24 V DC electronics supply is separate from the motor circuit, so control power stays live even if the main power stage trips.

Applications

Suited to light single-axis motion tasks - small conveyor sections, pick-and-place actuators, and indexing mechanisms - where a compact single-phase servo drive replaces a stepper or a larger 3-phase unit.
