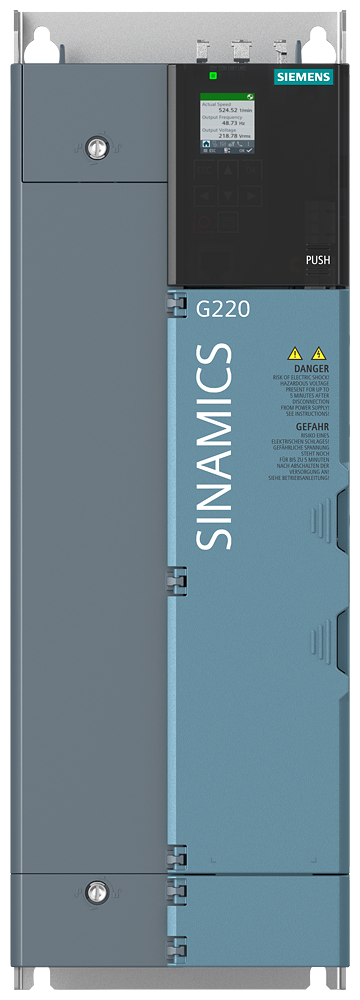

Siemens 6SL4113-2CA16-2AF0 SINAMICS G220 Clean Power 7.5 kW 400 V 3AC IP20 FSD1 Variable Frequency Drive

The Siemens 6SL4113-2CA16-2AF0 is a SINAMICS G220 Clean Power variable frequency drive rated for 7.5 kW low-overload (150% for 3 s, 110% for 57 s) or 5.5 kW high-overload (200% for 3 s, 150% for 57 s) on a 380–500 V 3AC supply. Frame size FSD1 (400 × 150 × 245 mm HxWxD), IP20 / UL open type, with an integrated braking chopper, SIL3 safety rating, C2 radio-interference suppression filter, PROFINET, and Modbus TCP on board.

Technical Specifications

Selection Notes

The 6SL4113-2CA16-2AF0 sits at the 7.5 kW low-overload / 5.5 kW high-overload boundary in the G220 Clean Power FSD1 frame, making it the correct selection for centrifugal pump or fan loads that demand low-overload duty at 7.5 kW while also tolerating high-overload cycling at 5.5 kW — a single unit covers both operating profiles. The integrated C2 EMC filter eliminates the need for an external filter in second-environment industrial installations, and the on-board braking chopper avoids purchasing a separate VFD braking module where controlled deceleration or gravity loads are present. Choose the next frame size up (FSE1 and above) when the continuous output power requirement exceeds 7.5 kW LO; choose a sibling without the integrated filter where a cabinet-level filter is already in the BOM and cost reduction is prioritised. SIL3 safety certification supports direct integration into functional-safety architectures without an add-on safe-off module.
