Siemens 6SL3310-1GH34-7AA3 SINAMICS G130 Power Module IP00 690V 465A 450kW VFD Power Module

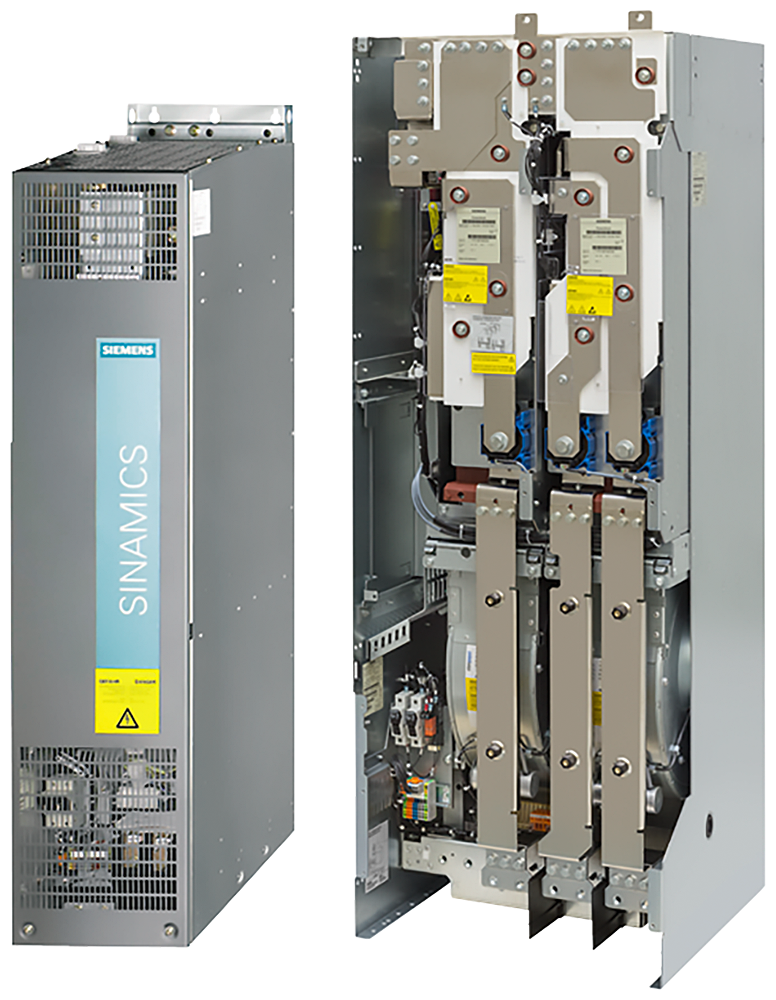

The Siemens 6SL3310-1GH34-7AA3 is a SINAMICS G130 power module rated 660-690 V 3AC, 50/60 Hz, at 465 A, giving a 450 kW type rating. It uses a 6-pulse supply design without power recovery, ships in IP00 protection, and includes a CIM board with Drive-CLiQ cable; the control unit is ordered separately. Net weight is 294.0 kg.

Technical Specifications

Selection Notes

At 465 A / 450 kW, this shares the 294.0 kg IP00 frame with the 410 A and 575 A ratings; specify it for loads between those two points rather than stepping up to the largest module in the range. IP00 means this is an open chassis: it relies entirely on the control cabinet for ingress protection and on the cabinet's forced-air duct for cooling, rather than carrying any enclosure of its own. Because the supply section is a 6-pulse design without power recovery, braking energy from the driven load cannot be fed back to the 660-690 V line; it has to be dissipated through a braking resistor or absorbed by a regenerative unit elsewhere in the line-up, not by this module. It ships as the power stage only, with the CIM board and Drive-CLiQ cable fitted but no control module, so a SINAMICS control unit has to be ordered and connected separately before the drive can run a motor. The Drive-CLiQ cable is Siemens' point-to-point digital link between the power module and the control unit, carrying parameter and diagnostic data over a single cable instead of discrete analog wiring.

Applications

This power module is the rectifier/inverter stage of a SINAMICS G130 single-axis chassis drive; it needs a control unit to operate and is built for mounting inside a control cabinet rather than as a stand-alone unit, consistent with its IP00 degree of protection.
