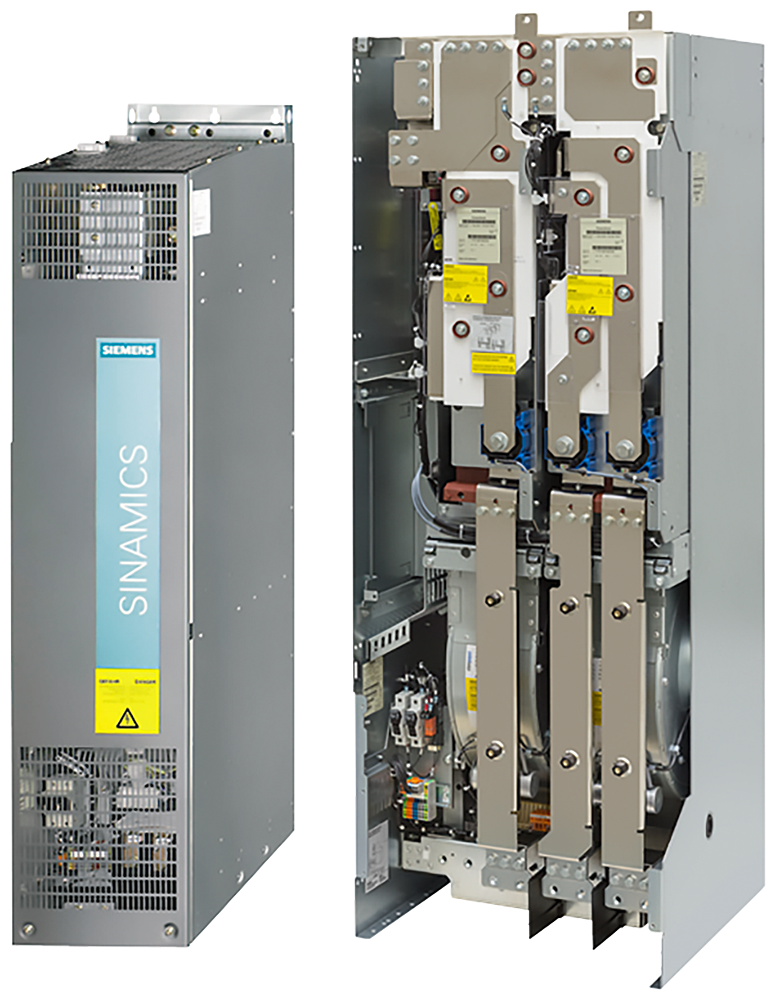

Siemens 6SL3310-1GE38-4AA3 SINAMICS G130 Power Module 450kW 840A IP00 VFD Power Module

The Siemens 6SL3310-1GE38-4AA3 is a SINAMICS G130 power module rated 450 kW at 840 A, built for a 380-480 V 3 AC supply at 50/60 Hz. It ships in IP00 degree of protection as a CIM design with a Drive-CLiQ cable included, but without a control module — a separate SINAMICS control unit is required to complete the drive.

Technical Specifications

Selection Notes

The 840 A / 450 kW rating places this power module at the upper end of the G130 range — size the line-side breaker and cabling to that current, not to the motor nameplate alone. IP00 is an open chassis rating, so the module must be installed inside a closed cabinet with forced cooling; it is not a stand-alone enclosure. Because it ships without a control module, it must be paired with a compatible SINAMICS control unit over Drive-CLiQ before commissioning — factor that into the bill of materials. The 6-pulse, non-regenerative supply design means braking energy is dissipated rather than fed back to the line, so a braking module or resistor is needed for applications with frequent deceleration.

Applications

Pumps, fans, compressors, and extruders running at 380-480 V that need 450 kW of continuous drive power, and cabinet builders assembling SINAMICS G130 drive systems where the control unit is sourced and configured separately.
