Siemens 6SL3244-0BB12-1BA1 SINAMICS G120 CU240E-2 6DI/3DO/2AI/2AO VFD Control Unit

% $-288.31

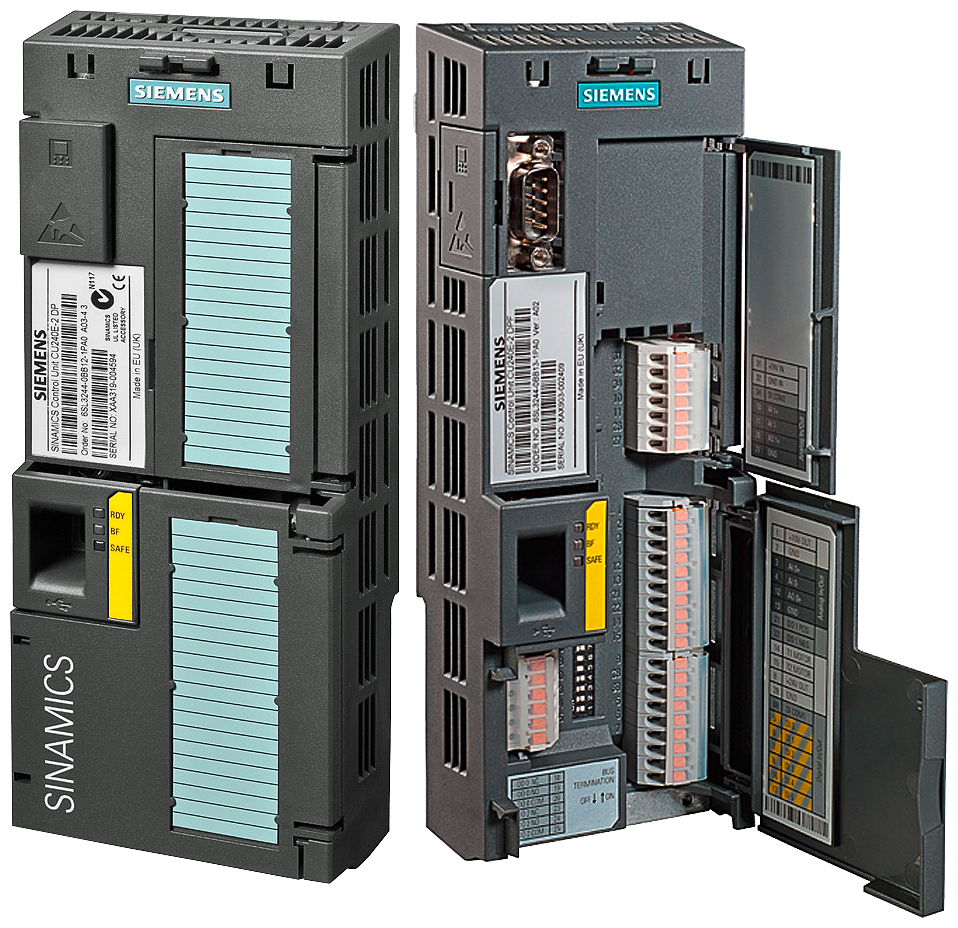

Siemens 6SL3244-0BB12-1BA1 SINAMICS G120 CU240E-2 VFD control unit
Siemens 6SL3244-0BB12-1BA1 SINAMICS G120 CU240E-2 VFD control unit

Siemens 6SL3244-0BB12-1BA1 SINAMICS G120 CU240E-2 6DI/3DO/2AI/2AO VFD Control Unit

Brand: Siemens
Reference No: 6SL3244-0BB12-1BA1
Catalog No: 6SL3244-0BB12-1BA1
Series: SINAMICS G120
Tariff Code (HS): 85371091
Rated Current: 0.50 A (max. power consumption)
Communication: RS485, USS protocol, USB, SD/MMC card
Stock: 149
Delivery time: 1-2 business day(s)
Shipping Origin: Türkiye EXW
$288.31

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The Siemens SINAMICS G120 Control Unit CU240E-2 (6SL3244-0BB12-1BA1) is an E-type control unit with integrated Safety Integrated STO, an RS485 interface with USS protocol, and onboard 6 DI, 3 DO, 2 AI, and 2 AO for pairing with a G120 power module.

Technical Specifications

SKU 6SL3244-0BB12-1BA1
Brand Siemens
Series SINAMICS G120
Product designation CU240E-2
24 V supply External DC, 20 - 29 V
Max. power consumption 0.50 A
Power loss 5.50 W
Digital inputs 6
Digital outputs 3 (1 usable as 2x DI standard)
Analog inputs 2, differential
Analog outputs 2, non-isolated
Control modes V/f linear/square-law/parameterizable, V/f FCC, V/f ECO, sensorless vector control, encoderless torque control
Interfaces RS485 (USS protocol), USB, SD/MMC card
Safety function Safety Integrated STO
Degree of protection IP20 / UL open type
Ambient temperature, operation -10 to 55 °C
Net weight 0.49 kg
Width 73.0 mm

Selection Notes

The 6 DI / 3 DO / 2 AI / 2 AO onboard I/O count and integrated STO safety function set the E-type CU240E-2 apart from lower-I/O control units in the CU240 family; pick it when the application needs onboard safe torque off without a separate safety module. Sensorless vector control, with no encoder input, covers standard induction motor applications; select a control unit with an encoder interface instead if closed-loop speed feedback is required.

Applications

Pairs with a SINAMICS G120 power module to control induction motors in pump, fan, and conveyor drives that need basic safety (STO) and USS/RS485 fieldbus connectivity.

Technical Details

Short Description
SINAMICS G120 CU240E-2 control unit, Safety STO, RS485/USS, 6DI/3DO/2AI/2AO, sensorless vector control.
Rated Current (Ampere)
0.50 A (max. power consumption)
Protection Type
IP20 / UL open type
Catalog No
6SL3244-0BB12-1BA1
Delivery Date (Days)
1-2 days
Model Number
6SL3244-0BB12-1BA1
Tariff Code
85371091
