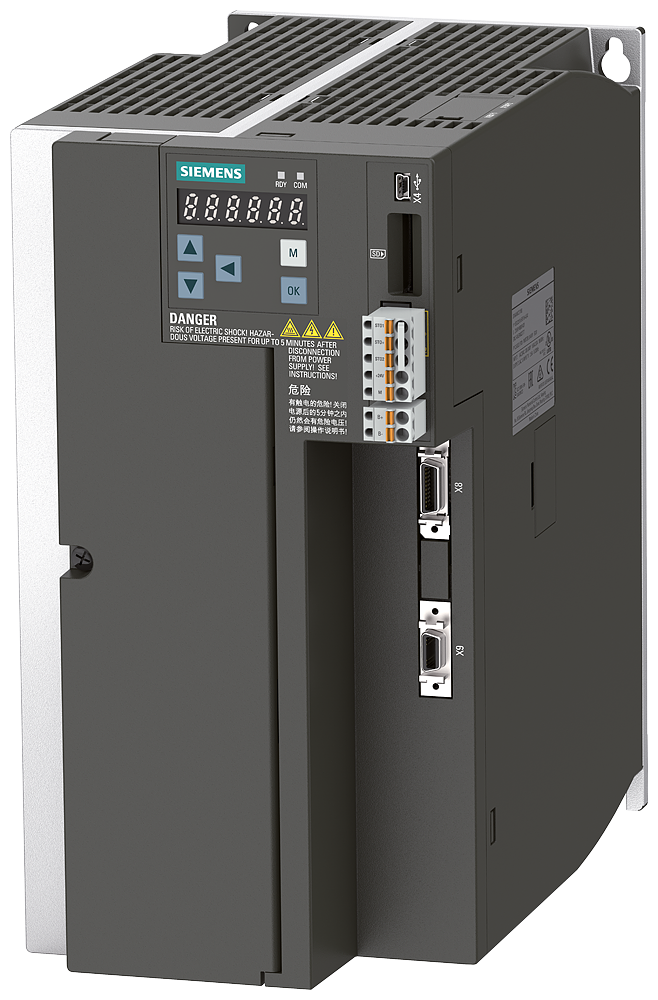

Siemens 6SL3210-5FE15-0UF0 SINAMICS V90 PN 5.0kW 400V PROFINET Servo Drive

The Siemens SINAMICS V90 (6SL3210-5FE15-0UF0) is a PROFINET servo drive rated for 5.0 kW motor power at 380-480 V AC input. It delivers 12.6 A output current across a 0-330 Hz frequency range and accepts 3 A rated / 15.8 A inrush input current at 45-66 Hz. Housed in an IP20 enclosure measuring 140 x 260 x 240 mm, it pairs with SIMOTICS S-1FL6 servo motors for PROFINET-networked motion control.

Technical Specifications

Selection Notes

This variant uses PROFINET for the control interface — pick it when the motion controller, such as a SIMATIC S7-1500T or S7-1200 with Motion Control, communicates over PROFINET rather than pulse-train or USS/Modbus RTU, which other V90 order codes support. At 5.0 kW motor power with 12.6 A output current, it sits toward the upper end of the V90 power range; lower-power SKUs in the same series suit smaller servo motors and reduce cabinet footprint. The 380-480 V input rating requires a matching three-phase supply, so check this against site voltage before ordering.

Applications

Used for closed-loop positioning and speed control in packaging, material handling, and machine tool axes where PROFINET integration with a SIMATIC controller is required. The IP20 enclosure is intended for mounting inside a control cabinet, not direct field or outdoor installation.
