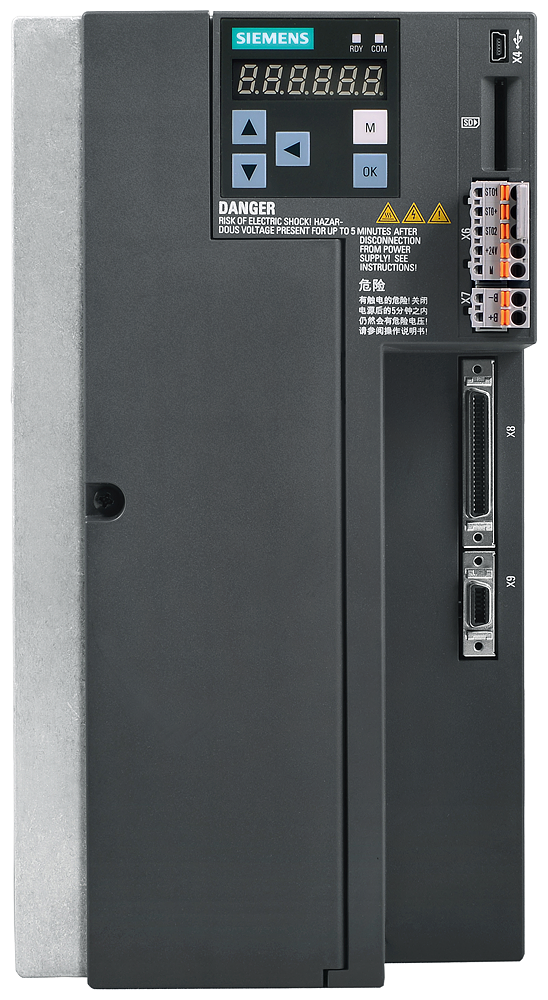

Siemens 6SL3210-5FE15-0UA0 SINAMICS V90 380-480V 5.0kW Servo Drive

The Siemens SINAMICS V90 6SL3210-5FE15-0UA0 is a three-phase 380-480 V AC servo drive rated for a 5.00 kW motor, delivering 12.60 A rated current and 37.80 A maximum output current from an IP20 / UL open-type, 140 x 260 x 240 mm enclosure. It targets higher-torque single-axis servo positioning on 400 V three-phase machines.

Technical Specifications

Selection Notes

At 5.00 kW and 380-480 V three-phase input, this is the higher-power end of the V90 range covered here, built for axes that need more torque and speed headroom than a fractional-kW unit provides; the 37.80 A maximum output current gives roughly 3x rated-current overload margin for acceleration. Because it's 3AC-only rather than the dual 1/3-phase input used on lower-power frames in the series, it requires a genuine three-phase feed, so confirm panel supply before specifying it over a smaller frame.

Applications

Fits mid-to-high-torque single-axis servo positioning on 400 V three-phase machines, including indexing tables, larger pick-and-place axes, and conveyor drives where the 5.00 kW rating and 37.80 A peak output cover the acceleration demand.
