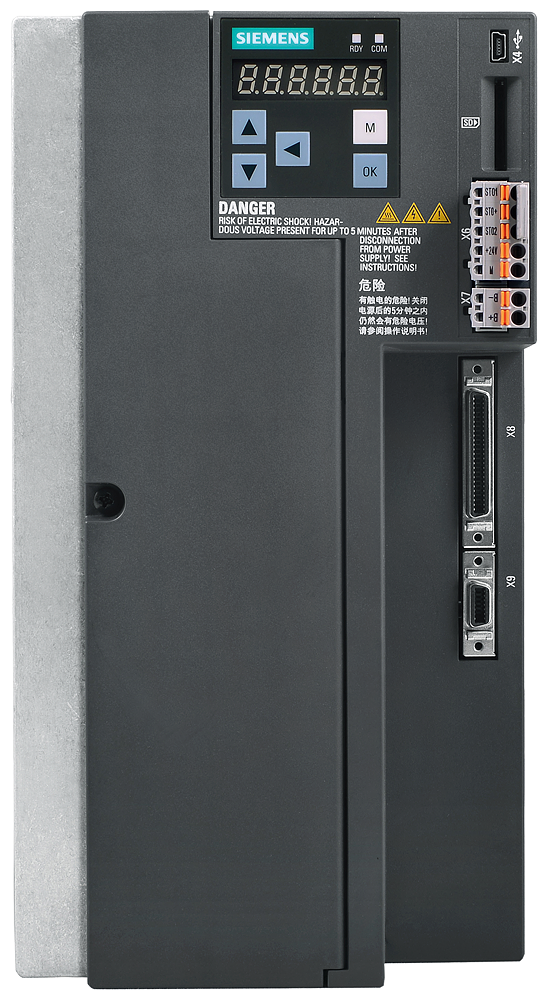

Siemens 6SL3210-5FE13-5UA0 SINAMICS V90 3.5kW 380-480V 33A Servo Drive

The Siemens 6SL3210-5FE13-5UA0 is a SINAMICS V90 servo drive rated 3.50 kW, drawing 11.00 A from a 3 AC 380-480 V, 45-66 Hz supply and delivering up to 33.00 A max output current. IP20/UL open type protection and a 140 x 260 x 240 mm (W x H x D), 5.65 kg Size C enclosure suit higher-power single-axis positioning.

Technical Specifications

Selection Notes

At 3.50 kW rated power and 33.00 A max output current, this Size C frame steps up from the smaller V90 units for higher-inertia or higher-speed axes. The 11.00 A rated input current on a 380-480 V three-phase supply is roughly double the smaller 1.75 kW frame's draw - confirm the feeder and branch protection are sized accordingly. Choose this frame over the 1.75 kW variant when the driven motor's continuous torque requirement exceeds what the smaller frame's 15.90 A output can deliver.

Applications

Suits higher-power 400 V class servo axes - larger feed axes, pick-and-place with heavier payloads, and machine tool spindles needing 3.5 kW from a SINAMICS V90 drive.
