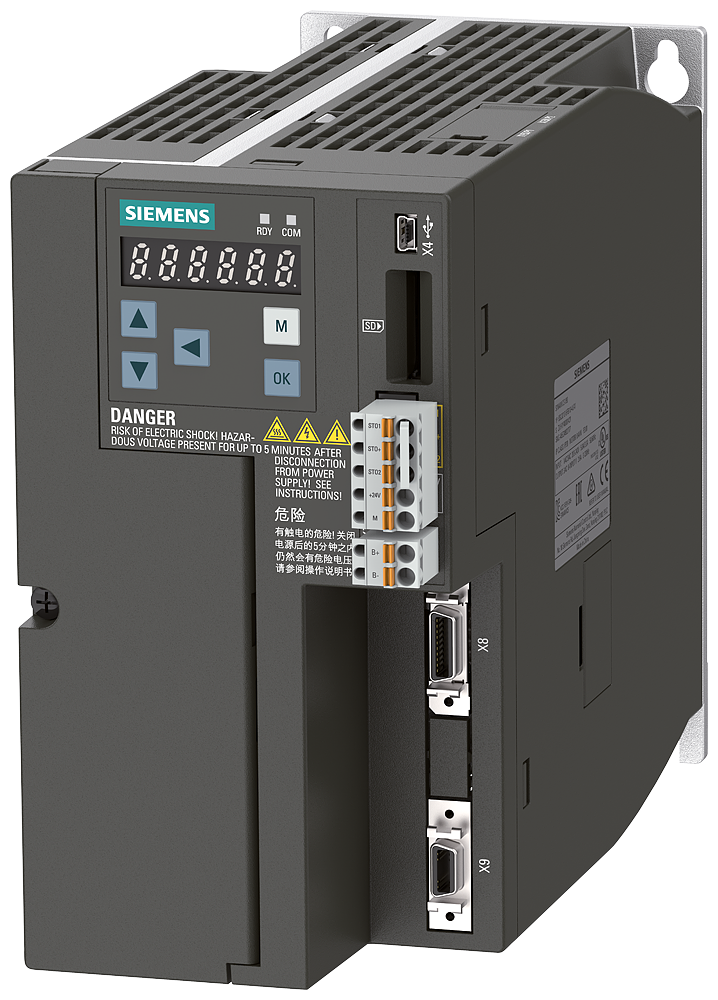

Siemens 6SL3210-5FE12-0UF0 SINAMICS V90 PROFINET 2.0/2.5kW Servo Drive

Siemens 6SL3210-5FE12-0UF0 is a SINAMICS V90 servo drive with a PROFINET interface, rated for 2.0/2.5 kW motors from a three-phase 380-480 V AC supply (-15%/+10%, 45-66 Hz). It delivers a 0-330 Hz output frequency range at up to 7.8 A rated output current, housed in an IP20, Frame Size B enclosure measuring 100 x 180 x 220 mm (W x H x D).

Technical Specifications

Selection Notes

The PROFINET variant (5FE12) targets machines already networked on PROFINET for motion control, in contrast to sibling V90 variants built for pulse/analog or other fieldbus interfaces - check the controller's fieldbus before ordering. At 2.0/2.5 kW motor rating in a Frame Size B, 100 x 180 x 220 mm enclosure, this unit sits in the mid-power band of the V90 range; higher continuous torque or larger motors call for the next frame size up. The 380-480 V three-phase input restricts it to industrial supply networks - it is not a 230 V single-phase unit.

Applications

Used for PROFINET-networked servo positioning axes on packaging, material handling, and general machine-building applications where the SIMOTICS S-1FL6 motor family pairs with the V90 drive.
